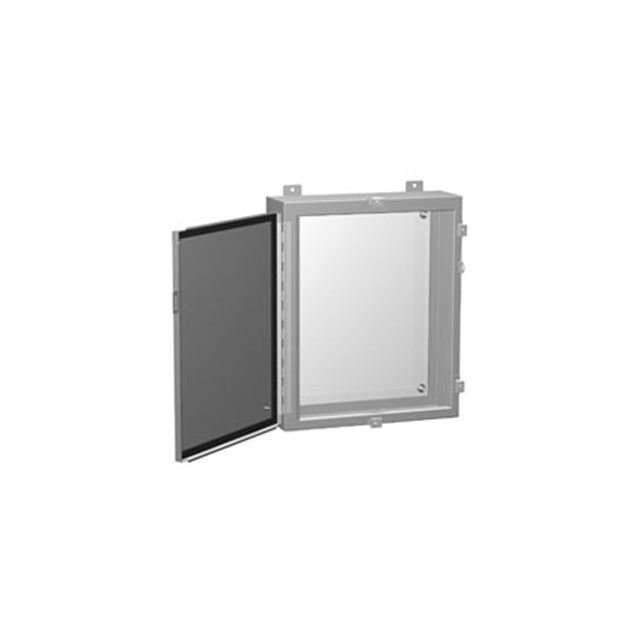

1418N4T8

Active

Hammond Manufacturing

BOX STEEL GRAY 60"L X 36"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnclosure Overview 1418N4T8

1418N4T8

Active

Hammond Manufacturing

BOX STEEL GRAY 60"L X 36"W

Deep-Dive with AI

DocumentsEnclosure Overview 1418N4T8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1418N4T8

Area (L x W)	2160 in²
Area (L x W)	1.394 m²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Interior Panels, Mounting Flange
Height [z]	8 "
Height [z]	203.2 mm
Material	Metal, Steel
Ratings	NEMA 3R, IP66, NEMA 12, UL-508, NEMA 4, NEMA 13
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Size / Dimension [x]	1524 mm
Size / Dimension [x]	1524 mm
Size / Dimension [y]	914.4 mm
Size / Dimension [y]	914.4 mm
Thickness	14 Gauge
Weight	245 lbs
Weight	111.1 kg

1418 Series

...

Part	Container Type	Ratings	Thickness	Shipping Info	Color	Material	Features	Weight	Weight	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Design	For Use With/Related Products	Accessory Type	Size / Dimension [x]	Size / Dimension [y]	Weight [custom]	Weight [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1418N4T8	Box	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508	14 Gauge	Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Interior Panels Mounting Flange	245 lbs	111.1 kg	2160 in²	1.394 m²	8 "	203.2 mm	914.4 mm	1524 mm	1524 mm	914.4 mm	Hinged Door Lid
Hammond Manufacturing 1418YYHHP																			1418 Series	Rails
Hammond Manufacturing 1418P8	Box	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Interior Panels Mounting Flange	182 lbs	82.6 kg	1512 in²	9755 cm²	8 "	203.2 mm	914.4 mm	1066.8 mm			Hinged Door Lid
Hammond Manufacturing 1418CA6	Box	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	14 Gauge		Gray	Metal Steel	Interior Panels Mounting Flange	32 lbs	14.5 kg	240 in²	1548 cm²	6 in	152.4 mm	304.8 mm	508 mm			Hinged Door Lid			20 "	12 "
Hammond Manufacturing 1418YW20				Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Single Access Single Door																313 lbs	142 kg
Hammond Manufacturing 1418G8	Box	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	14 Gauge		Gray	Metal Steel	Interior Panels Mounting Flange	34 lbs	15.4 kg	256 in²	1652 cm²	8 "	203.2 mm					Hinged Door Lid
Hammond Manufacturing 1418ZX36				Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Dual Door Single Access	850 lbs	385.6 kg
Hammond Manufacturing 1418N4SSM12	Box	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	14 Gauge	Drop shipped from the Manufacturer's Warehouse	Natural		Interior Panels Mounting Flange	136 lbs	61.7 kg	1080 in²	6968 cm²			762 mm	914.4 mm			Hinged Door Lid			36 "	30 "
Hammond Manufacturing 1418N4SSF8	Box	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	14 Gauge		Natural		Interior Panels Mounting Flange	72 lbs	32.7 kg			8 "	203.2 mm	508 mm	762 mm			Hinged Door Lid			30 in	20 in			3871 cm²	600 in²
Hammond Manufacturing 1418N4S16B6	Box	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	14 Gauge		Natural		Interior Panels Mounting Flange	28 lbs	12.7 kg	192 in²	1239 cm²	6 in	152.4 mm	304.8 mm	406.4 mm			Hinged Door Lid			16 in	12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 1918.73

Description

General part information

1418 Series

Box Metal, Steel Gray Hinged Door, Lid 60.000" L x 36.000" W (1524.00mm x 914.40mm) X 8.000" (203.20mm)

Documents

Technical documentation and resources

Enclosure Overview

Datasheet

1418N4T8

Datasheet
