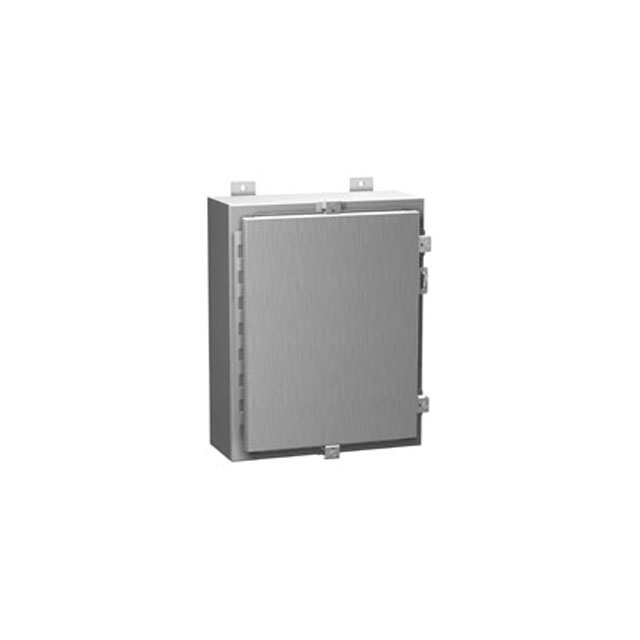

1418N4SSM12

Active

Hammond Manufacturing

NATURAL STAINLESS STEEL 304 WALL MOUNT ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnclosure Overview 1418N4SSM12

1418N4SSM12

Active

Hammond Manufacturing

NATURAL STAINLESS STEEL 304 WALL MOUNT ENCLOSURE

Deep-Dive with AI

DocumentsEnclosure Overview 1418N4SSM12

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1418N4SSM12

Area (L x W)	1080 in²
Area (L x W)	6968 cm²
Color	Natural
Container Type	Box
Design	Hinged Door, Lid
Features	Interior Panels, Mounting Flange
Ratings	UL-508, 4, 12, NEMA 3R, 13, JIC EGP-1-1967, IP66, 4X
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Size / Dimension [x]	36 "
Size / Dimension [x]	914.4 mm
Size / Dimension [y]	30 "
Size / Dimension [y]	762 mm
Thickness	14 Gauge
Weight	136 lbs
Weight	61.7 kg

1418 Series

...

Part	Container Type	Ratings	Thickness	Shipping Info	Color	Material	Features	Weight	Weight	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Design	For Use With/Related Products	Accessory Type	Size / Dimension [x]	Size / Dimension [y]	Weight [custom]	Weight [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1418N4T8	Box	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508	14 Gauge	Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Interior Panels Mounting Flange	245 lbs	111.1 kg	2160 in²	1.394 m²	8 "	203.2 mm	914.4 mm	1524 mm	1524 mm	914.4 mm	Hinged Door Lid
Hammond Manufacturing 1418YYHHP																			1418 Series	Rails
Hammond Manufacturing 1418P8	Box	IP54 NEMA 12 NEMA 13 UL-508	14 Gauge	Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Interior Panels Mounting Flange	182 lbs	82.6 kg	1512 in²	9755 cm²	8 "	203.2 mm	914.4 mm	1066.8 mm			Hinged Door Lid
Hammond Manufacturing 1418CA6	Box	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	14 Gauge		Gray	Metal Steel	Interior Panels Mounting Flange	32 lbs	14.5 kg	240 in²	1548 cm²	6 in	152.4 mm	304.8 mm	508 mm			Hinged Door Lid			20 "	12 "
Hammond Manufacturing 1418YW20				Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Single Access Single Door																313 lbs	142 kg
Hammond Manufacturing 1418G8	Box	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	14 Gauge		Gray	Metal Steel	Interior Panels Mounting Flange	34 lbs	15.4 kg	256 in²	1652 cm²	8 "	203.2 mm					Hinged Door Lid
Hammond Manufacturing 1418ZX36				Drop shipped from the Manufacturer's Warehouse	Gray	Metal Steel	Dual Door Single Access	850 lbs	385.6 kg
Hammond Manufacturing 1418N4SSM12	Box	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	14 Gauge	Drop shipped from the Manufacturer's Warehouse	Natural		Interior Panels Mounting Flange	136 lbs	61.7 kg	1080 in²	6968 cm²			762 mm	914.4 mm			Hinged Door Lid			36 "	30 "
Hammond Manufacturing 1418N4SSF8	Box	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	14 Gauge		Natural		Interior Panels Mounting Flange	72 lbs	32.7 kg			8 "	203.2 mm	508 mm	762 mm			Hinged Door Lid			30 in	20 in			3871 cm²	600 in²
Hammond Manufacturing 1418N4S16B6	Box	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	14 Gauge		Natural		Interior Panels Mounting Flange	28 lbs	12.7 kg	192 in²	1239 cm²	6 in	152.4 mm	304.8 mm	406.4 mm			Hinged Door Lid			16 in	12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 2794.78

Description

General part information

1418 Series

Box Metal, Stainless Steel Natural Hinged Door, Lid 36.000" L x 30.000" W (914.40mm x 762.00mm) X 12.000" (304.80mm)
