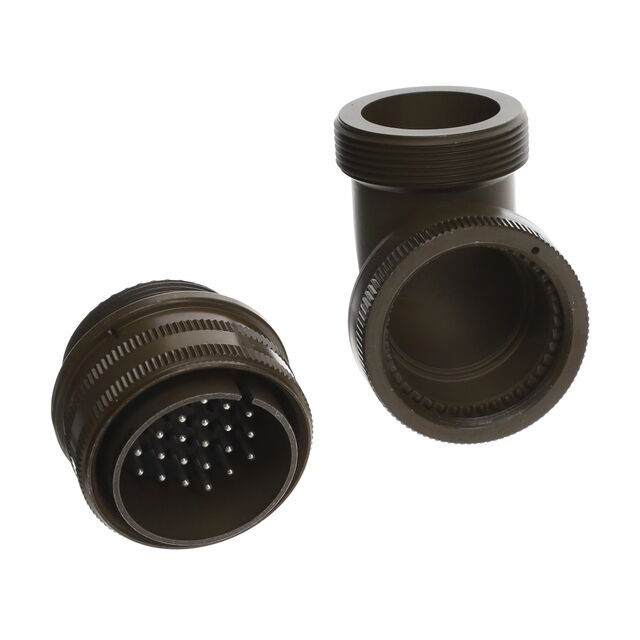

MS3108A24-28P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3108A24-28P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108A24-28P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	24
Shielding	Unshielded
Voltage Rating	250 VDC, 200 VAC

MS3108A24 Series

Part	Mounting Type	Color	Shell Finish	Contact Material	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shielding	Insert Material	Applications	Number of Positions	Voltage Rating	Primary Material	Qualification	Contact Finish - Mating	Orientation	Connector Type	Grade	Current Rating (Amps)	Shell Material	Shell Size - Insert
Amphenol Industrial Operations MS3108A24-11P
Amphenol Industrial Operations MS3108A24-28S	Free Hanging (In-Line) Right Angle	Olive Drab	Olive Drab Chromate over Cadmium	Copper Alloy	Coupling Nut	28	24	-55 °C	125 °C	Environment Resistant	Unshielded	Neoprene	Marine Military	24	200 VAC 250 VDC	Metal	MIL-DTL-5015	Silver	N	Female Sockets Plug	Military	13 A	Aluminum Alloy
Amphenol Industrial Operations MS3108A24-3P
Amphenol Industrial Operations MS3108A24-22S	Free Hanging (In-Line) Right Angle	Olive Drab	Olive Drab Chromate over Cadmium	Copper Alloy	Coupling Nut			-55 °C	125 °C	Environment Resistant	Unshielded	Neoprene	Marine Military	4	900 VAC 1250 VDC	Metal	MIL-DTL-5015	Silver	N	Female Sockets Plug	Military	46 A	Aluminum Alloy	24-22
Amphenol Industrial Operations MS3108A24-27S
Amphenol Industrial Operations MS3108A24-7P
Amphenol Industrial Operations MS3108A24-15S
Amphenol Industrial Operations MS3108A24-6S
Amphenol Industrial Operations MS3108A24-28P	Free Hanging (In-Line) Right Angle	Olive Drab	Olive Drab Chromate over Cadmium	Copper Alloy		28	24	-55 °C	125 °C	Environment Resistant	Unshielded	Neoprene	Marine Military	24	200 VAC 250 VDC	Metal	MIL-DTL-5015	Silver	N	Male Pins Plug	Military	13 A	Aluminum Alloy
Amphenol Industrial Operations MS3108A24-25S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.81
		10	$ 79.66
		25	$ 76.60
		50	$ 74.05
		100	$ 69.96

Description

General part information

MS3108A24 Series

24 Position Circular Connector Plug, Male Pins Solder Cup
