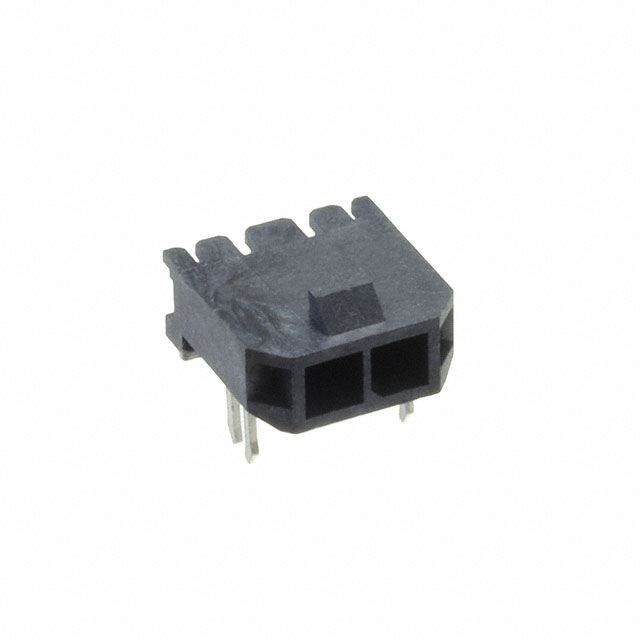

DML-1-02-A-H-T-A-BL

Active

Adam Tech

CONN HEADER R/A 2POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

DML-1-02-A-H-T-A-BL

Active

Adam Tech

CONN HEADER R/A 2POS 3MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-1-02-A-H-T-A-BL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.152 in
Insulation Height	3.85 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

DML-1 Series

Part	Features	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Termination	Number of Positions Loaded	Shrouding	Fastening Type	Contact Type	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Number of Rows	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)
Adam Tech DML-1-02-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin	2	4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-02-A-V-T-A-SBL		250 VAC			Brass	Tin	2			Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole	Board to Cable/Wire	1	UL94 V-0	Black		Header	9.91 mm	0.39 in	3.18 mm	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-03-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin		4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-05-A-H-T-A		250 VAC			Brass	Tin		4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole Right Angle	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header			3.18 mm	0.125 in
Adam Tech DML-1-04-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin	4	4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-02-A-V-T-A		250 VAC			Brass	Tin	2			Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole	Board to Cable/Wire	1	UL94 V-0	Black		Header			3.18 mm	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-02-A-H-T-A-BL		250 VAC	-25 °C	85 °C	Brass	Tin	2	3.85 mm	0.152 in	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Through Hole Right Angle	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header			3.18 mm	0.125 in
Adam Tech DML-1-05-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin		4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-03-A-H-T-A-BL		250 VAC	-25 °C	85 °C	Brass	Tin		3.85 mm	0.152 in	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Through Hole Right Angle	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header			3.18 mm	0.125 in
Adam Tech DML-1-03-A-V-T-A		250 VAC			Brass	Tin				Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole	Board to Cable/Wire	1	UL94 V-0	Black		Header			3.18 mm	0.125 in	Varies by Wire Gauge
