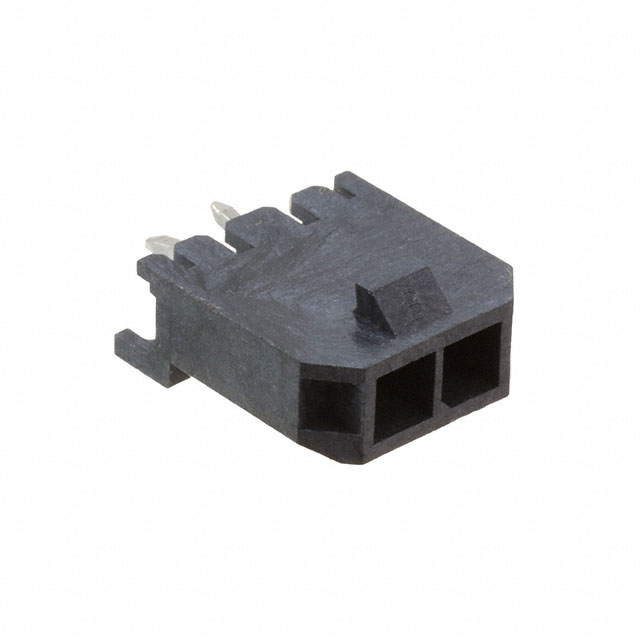

DML-1-02-A-V-T-A

Active

Adam Tech

CONN HEADER VERT 2POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Medical Industry Brochure +1

DML-1-02-A-V-T-A

Active

Adam Tech

CONN HEADER VERT 2POS 3MM

Deep-Dive with AI

DocumentsDatasheet Medical Industry Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-1-02-A-V-T-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

DML-1 Series

Part	Features	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Termination	Number of Positions Loaded	Shrouding	Fastening Type	Contact Type	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Number of Rows	Material Flammability Rating	Insulation Color	Current Rating (Amps)	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)
Adam Tech DML-1-02-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin	2	4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-02-A-V-T-A-SBL		250 VAC			Brass	Tin	2			Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole	Board to Cable/Wire	1	UL94 V-0	Black		Header	9.91 mm	0.39 in	3.18 mm	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-03-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin		4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-05-A-H-T-A		250 VAC			Brass	Tin		4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole Right Angle	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header			3.18 mm	0.125 in
Adam Tech DML-1-04-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin	4	4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-02-A-V-T-A		250 VAC			Brass	Tin	2			Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole	Board to Cable/Wire	1	UL94 V-0	Black		Header			3.18 mm	0.125 in	Varies by Wire Gauge
Adam Tech DML-1-02-A-H-T-A-BL		250 VAC	-25 °C	85 °C	Brass	Tin	2	3.85 mm	0.152 in	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Through Hole Right Angle	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header			3.18 mm	0.125 in
Adam Tech DML-1-05-A-H-T-A-TSMT-T/R	Solder Retention	250 VAC	-25 °C	85 °C	Brass	Tin		4.37 mm	0.172 "	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Surface Mount	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header
Adam Tech DML-1-03-A-H-T-A-BL		250 VAC	-25 °C	85 °C	Brass	Tin		3.85 mm	0.152 in	Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Nylon 6T Polyamide (PA6T)	0.118 in	3 mm	Through Hole Right Angle	Board to Cable/Wire	1	UL94 V-0	Black	5 A	Header			3.18 mm	0.125 in
Adam Tech DML-1-03-A-V-T-A		250 VAC			Brass	Tin				Square	Solder	All	Shrouded - 4 Wall	Locking Ramp	Male Pin	Thermoplastic	0.118 in	3 mm	Through Hole	Board to Cable/Wire	1	UL94 V-0	Black		Header			3.18 mm	0.125 in	Varies by Wire Gauge
