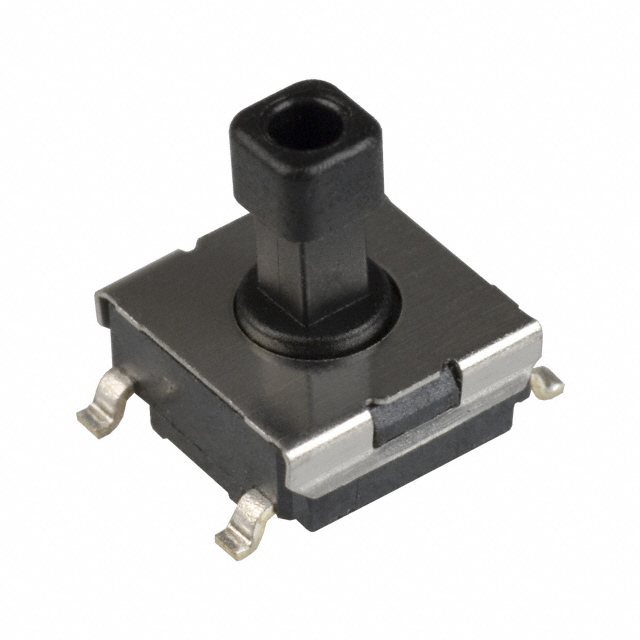

B3FS-1050

Active

Omron Electronics Inc-EMC Div

KEYPAD SWITCH, 1 SWITCHES, SPST, MOMENTARY-TACTILE, 0.05A, 24VDC, 1.27N, SOLDER TERMINAL, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasics of Tactile Switches How to Read Date Codes +2

B3FS-1050

Active

Omron Electronics Inc-EMC Div

KEYPAD SWITCH, 1 SWITCHES, SPST, MOMENTARY-TACTILE, 0.05A, 24VDC, 1.27N, SOLDER TERMINAL, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

Deep-Dive with AI

DocumentsBasics of Tactile Switches How to Read Date Codes +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B3FS-1050

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6.3 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

B3FS Series

Part	Illumination	Actuator Orientation	Switch Travel	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical [z]	Mechanical Life	Termination Style	Switch Function	Operating Force	Contact Rating @ Voltage	Circuit	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type
Omron Electronics Inc-EMC Div B3FS-1052	Non-Illuminated	Top Actuated	0.25 mm	6 mm	6.3 mm	7.3 mm	300000 Cycles	Gull Wing	Off-Mom	150 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Plunger for Cap
Omron Electronics Inc-EMC Div B3FS-1005P	Non-Illuminated	Top Actuated	0.25 mm	6 mm	6.3 mm	3.1 mm	300000 Cycles	Gull Wing	Off-Mom	260 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Standard
Omron Electronics Inc-EMC Div B3FS-4055P	Non-Illuminated	Top Actuated	0.25 mm	12 mm	12 mm	7.3 mm	1000000 Cycles	Gull Wing	Off-Mom	260 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Plunger for Cap
Omron Electronics Inc-EMC Div B3FS-1002P	Non-Illuminated	Top Actuated	0.25 mm	6 mm	6.3 mm	3.1 mm	300000 Cycles	Gull Wing	Off-Mom	150 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Standard
Omron Electronics Inc-EMC Div B3FS-1050	Non-Illuminated	Top Actuated	0.25 mm	6 mm	6.3 mm	7.3 mm	1000000 Cycles	Gull Wing	Off-Mom	100 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Plunger for Cap
Omron Electronics Inc-EMC Div B3FS-1052P	Non-Illuminated	Top Actuated	0.25 mm	6 mm	6.3 mm	7.3 mm	300000 Cycles	Gull Wing	Off-Mom	150 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Plunger for Cap
Omron Electronics Inc-EMC Div B3FS-1050P	Non-Illuminated	Top Actuated	0.25 mm	6 mm	6.3 mm	7.3 mm	1000000 Cycles	Gull Wing	Off-Mom	100 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Plunger for Cap
Omron Electronics Inc-EMC Div B3FS-4052P	Non-Illuminated	Top Actuated	0.25 mm	12 mm	12 mm	7.3 mm	3000000 Cycles	Gull Wing	Off-Mom	150 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Plunger for Cap
Omron Electronics Inc-EMC Div B3FS-4005P	Non-Illuminated	Top Actuated	0.25 mm	12 mm	12 mm	4.3 mm	1000000 Cycles	Gull Wing	Off-Mom	260 gf	0.05 A 24 VDC	SPST-NO	Surface Mount	70 °C	-25 °C	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.92
		10	$ 1.81
		25	$ 1.64
		100	$ 1.42
		300	$ 1.38
