V15H16-CZ100A03-K

Obsolete

Honeywell Sensing and Productivity Solutions

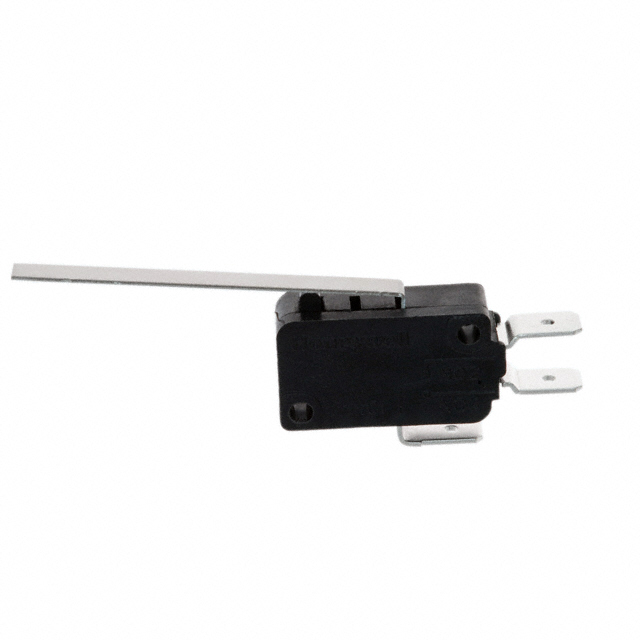

SWITCH SNAP ACTION SPDT 16A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V15H16-CZ100A03-K

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 16A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15H16-CZ100A03-K

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	16 A
Differential Travel	0.094 in
Differential Travel	2.4 mm
Electrical Life	50000 Cycles
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	30 gf
Operating Position	15.3 mm
Operating Position	0.602 "
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-25 °C
Overtravel [x]	2.6 mm
Overtravel [x]	0.102 in
Pretravel	0.252 in
Pretravel	6.4 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

V15H1 Series

Part	Operating Force	Circuit	Voltage Rating - AC	Pretravel	Pretravel	Differential Travel	Differential Travel	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mounting Type	Electrical Life	Current Rating (Amps)	Release Force	Operating Position	Operating Position	Termination Style	Actuator Type	Mechanical Life	Voltage Rating - DC	Overtravel [x]	Overtravel [x]
Honeywell Sensing and Productivity Solutions V15H16-EZ100A01-K	100 gf	SPDT	250 V	0.063 in	1.6 mm	0.016 "	0.4 mm	On-Mom	150 °C	-25 °C	0.76 mm	0.03 in	Chassis Mount	50000 Cycles	16 A	25 gf	15.3 mm	0.602 "	Quick Connect - 0.187" (4.7mm)	Lever Straight	5000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ300A02		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		16 A				Quick Connect - 0.250" (6.3mm)	Lever Straight	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ400B02-K	125 gf	SPDT	250 V			0.065 in	1.7 mm	On-Mom	150 °C	-25 °C	2.2 mm	0.087 in	Chassis Mount	50000 Cycles	16 A	30 gf	15.3 mm	0.602 "	Quick Connect - 0.250" (6.3mm)	Lever Straight	5000000 Cycles
Honeywell Sensing and Productivity Solutions V15H10-E1Z200B01-K		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		1 A 10 A				Quick Connect - 0.187" (4.7mm)	Lever Straight	1000000 Cycles	30 V
Honeywell Sensing and Productivity Solutions V15H16-EP400-K	400 gf	SPST-NO	250 V	0.063 in	1.6 mm	0.016 "	0.4 mm	Off-Mom	150 °C	-25 °C	0.76 mm	0.03 in	Chassis Mount	50000 Cycles	16 A		14.7 mm	0.579 in	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ100A03-K	30 gf	SPDT	250 V	0.252 in	6.4 mm	0.094 in	2.4 mm	On-Mom	150 °C	-25 °C			Chassis Mount	50000 Cycles	16 A		15.3 mm	0.602 "	Quick Connect - 0.250" (6.3mm)	Lever Straight	5000000 Cycles		2.6 mm	0.102 in
Honeywell Sensing and Productivity Solutions V15H16-CZ200A06		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		16 A				Quick Connect - 0.250" (6.3mm)	Lever Roller	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-EZ200A05	240 gf	SPDT	125 V	0.06 in	1.5 mm	0.031 "	0.8 mm	On-Mom	150 °C	-25 °C	0.4 mm	0.015 "	Chassis Mount		16 A		20.6 mm	0.812 in	Quick Connect - 0.187" (4.7mm)	Lever Roller	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ200B04-K	70 gf	SPDT	250 V	0.219 in	5.6 mm	0.062 in	1.6 mm	On-Mom	150 °C	-25 °C	2.5 mm	0.098 in	Chassis Mount	50000 Cycles	16 A	15 gf	18.5 mm	0.73 in	Quick Connect - 0.250" (6.3mm)	Lever Simulated Roller	5000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ200A03		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		16 A				Quick Connect - 0.250" (6.3mm)	Lever Straight	1000000 Cycles
