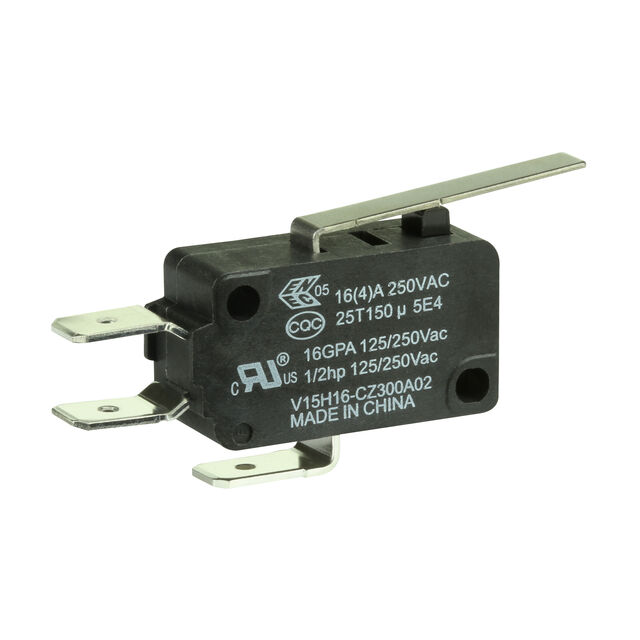

V15H16-CZ300A02

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V15H16-CZ300A02

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 16A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15H16-CZ300A02

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	16 A
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

V15H1 Series

Part	Operating Force	Circuit	Voltage Rating - AC	Pretravel	Pretravel	Differential Travel	Differential Travel	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mounting Type	Electrical Life	Current Rating (Amps)	Release Force	Operating Position	Operating Position	Termination Style	Actuator Type	Mechanical Life	Voltage Rating - DC	Overtravel [x]	Overtravel [x]
Honeywell Sensing and Productivity Solutions V15H16-EZ100A01-K	100 gf	SPDT	250 V	0.063 in	1.6 mm	0.016 "	0.4 mm	On-Mom	150 °C	-25 °C	0.76 mm	0.03 in	Chassis Mount	50000 Cycles	16 A	25 gf	15.3 mm	0.602 "	Quick Connect - 0.187" (4.7mm)	Lever Straight	5000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ300A02		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		16 A				Quick Connect - 0.250" (6.3mm)	Lever Straight	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ400B02-K	125 gf	SPDT	250 V			0.065 in	1.7 mm	On-Mom	150 °C	-25 °C	2.2 mm	0.087 in	Chassis Mount	50000 Cycles	16 A	30 gf	15.3 mm	0.602 "	Quick Connect - 0.250" (6.3mm)	Lever Straight	5000000 Cycles
Honeywell Sensing and Productivity Solutions V15H10-E1Z200B01-K		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		1 A 10 A				Quick Connect - 0.187" (4.7mm)	Lever Straight	1000000 Cycles	30 V
Honeywell Sensing and Productivity Solutions V15H16-EP400-K	400 gf	SPST-NO	250 V	0.063 in	1.6 mm	0.016 "	0.4 mm	Off-Mom	150 °C	-25 °C	0.76 mm	0.03 in	Chassis Mount	50000 Cycles	16 A		14.7 mm	0.579 in	Quick Connect - 0.187" (4.7mm)	Round (Pin Plunger)	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ100A03-K	30 gf	SPDT	250 V	0.252 in	6.4 mm	0.094 in	2.4 mm	On-Mom	150 °C	-25 °C			Chassis Mount	50000 Cycles	16 A		15.3 mm	0.602 "	Quick Connect - 0.250" (6.3mm)	Lever Straight	5000000 Cycles		2.6 mm	0.102 in
Honeywell Sensing and Productivity Solutions V15H16-CZ200A06		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		16 A				Quick Connect - 0.250" (6.3mm)	Lever Roller	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-EZ200A05	240 gf	SPDT	125 V	0.06 in	1.5 mm	0.031 "	0.8 mm	On-Mom	150 °C	-25 °C	0.4 mm	0.015 "	Chassis Mount		16 A		20.6 mm	0.812 in	Quick Connect - 0.187" (4.7mm)	Lever Roller	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ200B04-K	70 gf	SPDT	250 V	0.219 in	5.6 mm	0.062 in	1.6 mm	On-Mom	150 °C	-25 °C	2.5 mm	0.098 in	Chassis Mount	50000 Cycles	16 A	15 gf	18.5 mm	0.73 in	Quick Connect - 0.250" (6.3mm)	Lever Simulated Roller	5000000 Cycles
Honeywell Sensing and Productivity Solutions V15H16-CZ200A03		SPDT	125 V					On-Mom	150 °C	-25 °C			Chassis Mount		16 A				Quick Connect - 0.250" (6.3mm)	Lever Straight	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 2.97

Description

General part information

V15H1 Series

Switch SPDT Chassis Mount
