09140052601

Active

HARTING Technology Group

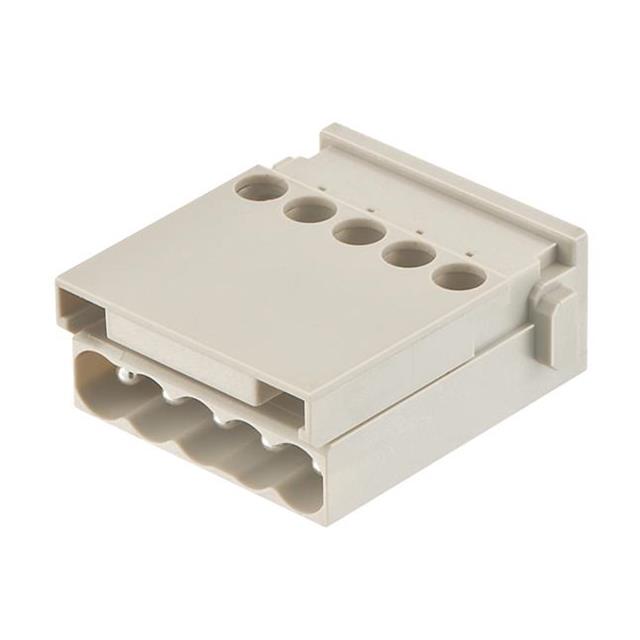

HAN E SCREW MODULE - MALE

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN E SCREW MODULE - MALE

Technical Specifications

Parameters and characteristics for this part

Specification	09140052601

Color	Gray
Connector Type	Module
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw

Part	Gender	Termination Style	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Housing Material	Connector Type	Color	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish
HARTING Technology Group 09140052647	Male	Crimp Screw	UL94 V-0	5	125 °C	-40 °C	Han®	Polycarbonate (PC)	Module	Gray
HARTING Technology Group 09140052741	Female	Crimp Screw	UL94 V-0	5	125 °C	-40 °C	Han®	Polycarbonate (PC)	Module	Gray
HARTING Technology Group 09140052601	Male	Screw	UL94 V-0		125 °C	-40 °C		Polycarbonate (PC)	Module	Gray	16 A
HARTING Technology Group 09140052716	Female	Push In	UL94 V-0		125 °C	-40 °C		Polycarbonate (PC)	Module	Gray	16 A	600 V	Copper Alloy	Silver
HARTING Technology Group 09140052717	Female	Push In	UL94 V-0		125 °C	-40 °C	Han-Modular®	Polycarbonate (PC)	Module	Gray	16 A	400 V	Copper Alloy	Gold
HARTING Technology Group 09140052617	Male	Tension Clamp	UL94 V-0		125 °C	-40 °C		Polycarbonate (PC)	Module	Gray	16 A	400 V	Copper Alloy	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray 5 Position Screw
