09140052617

Active

HARTING Technology Group

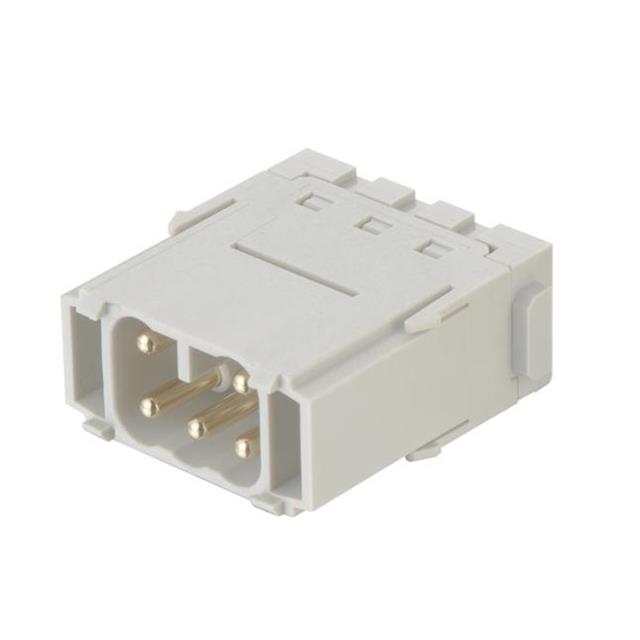

HAN ES 5PIN MODULE MALE CAGE CLAMP, GOLD CONTACTS

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN ES 5PIN MODULE MALE CAGE CLAMP, GOLD CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	09140052617

Color	Gray
Connector Type	Module
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Tension Clamp
Voltage Rating	400 V

Part	Gender	Termination Style	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Housing Material	Connector Type	Color	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish
HARTING Technology Group 09140052647	Male	Crimp Screw	UL94 V-0	5	125 °C	-40 °C	Han®	Polycarbonate (PC)	Module	Gray
HARTING Technology Group 09140052741	Female	Crimp Screw	UL94 V-0	5	125 °C	-40 °C	Han®	Polycarbonate (PC)	Module	Gray
HARTING Technology Group 09140052601	Male	Screw	UL94 V-0		125 °C	-40 °C		Polycarbonate (PC)	Module	Gray	16 A
HARTING Technology Group 09140052716	Female	Push In	UL94 V-0		125 °C	-40 °C		Polycarbonate (PC)	Module	Gray	16 A	600 V	Copper Alloy	Silver
HARTING Technology Group 09140052717	Female	Push In	UL94 V-0		125 °C	-40 °C	Han-Modular®	Polycarbonate (PC)	Module	Gray	16 A	400 V	Copper Alloy	Gold
HARTING Technology Group 09140052617	Male	Tension Clamp	UL94 V-0		125 °C	-40 °C		Polycarbonate (PC)	Module	Gray	16 A	400 V	Copper Alloy	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray 5 Position Tension Clamp
