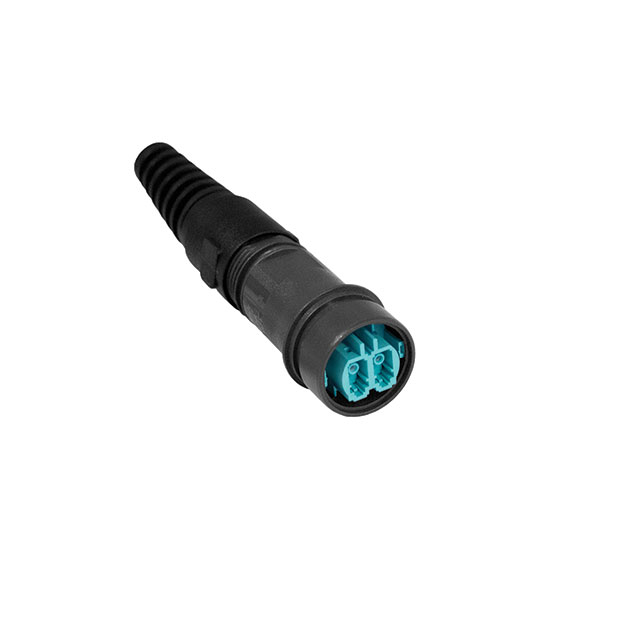

PXF6051C

Active

BULGIN LIMITED

CIRCULAR FIBER CONNECTORS / 6000 SERIES-DUPLEX LC FIBER BUCCANEER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXF6051C

Active

BULGIN LIMITED

CIRCULAR FIBER CONNECTORS / 6000 SERIES-DUPLEX LC FIBER BUCCANEER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXF6051C

Boot Color	Black
Connector Type	Receptacle
Features	Strain Relief
For Use With/Related Products	LC Connectors
Housing Color	Black
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Duplex

PXF6051 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Housing Color	Housing Material	Simplex/Duplex	Boot Color	Material Flammability Rating	Features	For Use With/Related Products	Jacket (Insulation) Material	Bend Radius	Length - Overall	Length - Overall	Cable Diameter [diameter]	Cable Diameter [diameter]	Type	1st Connector	Cable Type	2nd Connector	Color - Cable	Fiber Type	Color - Connectors	Ratings	Length - Overall [x]	Length - Overall [x]	Bend Radius [radius]	Insertion Loss
BULGIN LIMITED PXF6051C	Receptacle	70 °C	-25 °C	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Black	Polyamide (PA) Nylon	Duplex	Black	UL94 V-0	Strain Relief	LC Connectors
BULGIN LIMITED PXF6051BAA		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke		Poly-Vinyl Chloride (PVC)	30 mm	5 m	16.4 ft	2 mm	0.08 in	Duplex Multimode OM1	LC Duplex	Buffered Fiber	LC Duplex	Orange	62.5/125	Aqua
BULGIN LIMITED PXF6051CAD		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH	82 ft	25 m	10 mm	0.2 dB
BULGIN LIMITED PXF6051CAE		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke				50 m	164 ft	2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH			10 mm	0.2 dB
BULGIN LIMITED PXF6051BAK		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke		Poly-Vinyl Chloride (PVC)	30 mm	450 m	1476.4 ft	2 mm	0.08 in	Duplex Multimode OM1	LC Duplex	Buffered Fiber	LC Duplex	Orange	62.5/125	Aqua
BULGIN LIMITED PXF6051CAF		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke				100 m	328.1 '	2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH			10 mm	0.2 dB
BULGIN LIMITED PXF6051AAA		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke				5 m	16.4 ft	2 mm	0.08 in	Duplex Multimode OM3	LC Duplex	Buffered Fiber	LC Duplex		50/125	Aqua	LSZH			10 mm
BULGIN LIMITED PXF6051AAJ		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex Multimode OM3	LC Duplex	Buffered Fiber	LC Duplex		50/125	Aqua	LSZH	984.3 ft	300 m	10 mm
BULGIN LIMITED PXF6051CAH		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH	656.2 '	200 m	10 mm	0.2 dB
BULGIN LIMITED PXF6051AAB		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex Multimode OM3	LC Duplex	Buffered Fiber	LC Duplex		50/125	Aqua	LSZH	32.8 ft	10 m	10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	2	$ 54.34
		13	$ 54.34
		25	$ 45.73
Digikey	Bulk	1	$ 23.58
		10	$ 22.44

Description

General part information

PXF6051 Series

Fiber Optic Connector Housing Receptacle For LC Connectors
