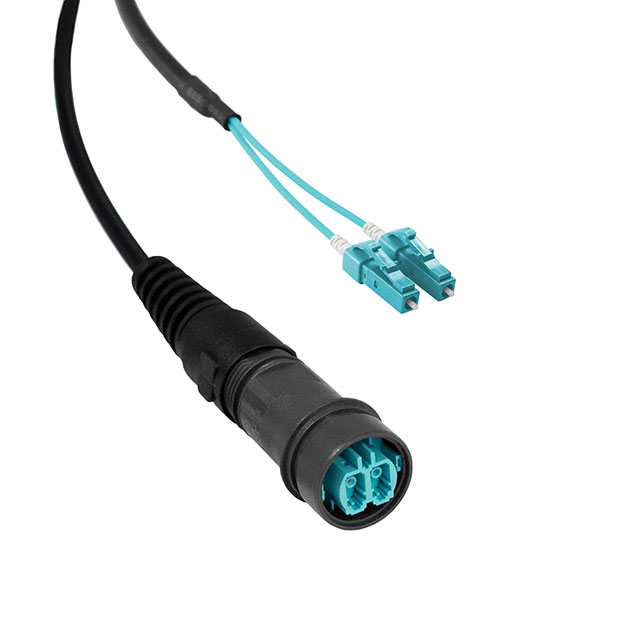

PXF6051AAA

Active

BULGIN LIMITED

FBR OPTIC CBL LC-LC DUPLEX 5M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXF6051AAA

Active

BULGIN LIMITED

FBR OPTIC CBL LC-LC DUPLEX 5M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXF6051AAA

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius [radius]	10 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Buffered Fiber
Color - Connectors	Aqua
Features	IP66, IP68, IP69K, Low Smoke
Fiber Type	50/125
Length - Overall	5 m
Length - Overall	16.4 ft
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Ratings	LSZH
Type	Duplex, OM3, Multimode

PXF6051 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Housing Color	Housing Material	Simplex/Duplex	Boot Color	Material Flammability Rating	Features	For Use With/Related Products	Jacket (Insulation) Material	Bend Radius	Length - Overall	Length - Overall	Cable Diameter [diameter]	Cable Diameter [diameter]	Type	1st Connector	Cable Type	2nd Connector	Color - Cable	Fiber Type	Color - Connectors	Ratings	Length - Overall [x]	Length - Overall [x]	Bend Radius [radius]	Insertion Loss
BULGIN LIMITED PXF6051C	Receptacle	70 °C	-25 °C	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Black	Polyamide (PA) Nylon	Duplex	Black	UL94 V-0	Strain Relief	LC Connectors
BULGIN LIMITED PXF6051BAA		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke		Poly-Vinyl Chloride (PVC)	30 mm	5 m	16.4 ft	2 mm	0.08 in	Duplex Multimode OM1	LC Duplex	Buffered Fiber	LC Duplex	Orange	62.5/125	Aqua
BULGIN LIMITED PXF6051CAD		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH	82 ft	25 m	10 mm	0.2 dB
BULGIN LIMITED PXF6051CAE		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke				50 m	164 ft	2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH			10 mm	0.2 dB
BULGIN LIMITED PXF6051BAK		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke		Poly-Vinyl Chloride (PVC)	30 mm	450 m	1476.4 ft	2 mm	0.08 in	Duplex Multimode OM1	LC Duplex	Buffered Fiber	LC Duplex	Orange	62.5/125	Aqua
BULGIN LIMITED PXF6051CAF		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke				100 m	328.1 '	2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH			10 mm	0.2 dB
BULGIN LIMITED PXF6051AAA		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke				5 m	16.4 ft	2 mm	0.08 in	Duplex Multimode OM3	LC Duplex	Buffered Fiber	LC Duplex		50/125	Aqua	LSZH			10 mm
BULGIN LIMITED PXF6051AAJ		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex Multimode OM3	LC Duplex	Buffered Fiber	LC Duplex		50/125	Aqua	LSZH	984.3 ft	300 m	10 mm
BULGIN LIMITED PXF6051CAH		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex OS1 Singlemode	LC Duplex	Buffered Fiber	LC Duplex	Yellow		Aqua	LSZH	656.2 '	200 m	10 mm	0.2 dB
BULGIN LIMITED PXF6051AAB		70 °C	-25 °C								IP66 IP68 IP69K Low Smoke						2 mm	0.08 in	Duplex Multimode OM3	LC Duplex	Buffered Fiber	LC Duplex		50/125	Aqua	LSZH	32.8 ft	10 m	10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 94.41

Description

General part information

PXF6051 Series

Cable Fiber Optic LC Duplex To LC Duplex 50/125 16.4' (5.0m)
