ATS-57003-C1-R0

Active

Advanced Thermal Solutions Inc.

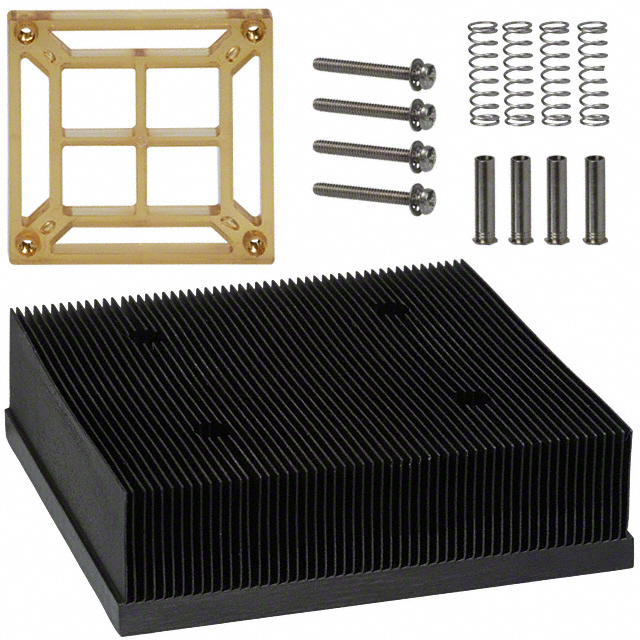

HEAT SINK 94MM X 94MM X 27MM

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT SINK 94MM X 94MM X 27MM

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-57003-C1-R0

Attachment Method	Push Pin
Fin Height [z]	27 mm
Fin Height [z]	1.063 in
Length [x]	3.7 in
Length [x]	94 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	LGA
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	1.4 °C/W
Type	Top Mount
Width [x]	93.98 mm
Width [x]	3.7 in

Part	Material Finish	Length [x]	Length [x]	Type	Thermal Resistance @ Forced Air Flow	Material	Attachment Method	Shape	Fin Height [z]	Fin Height [z]	Package Cooled	Width [x]	Width [x]	Width [x]	Fin Height	Fin Height
Advanced Thermal Solutions Inc. ATS-57002-C1-R0	Black Anodized	3.7 in	94 mm	Top Mount	1 °C/W 200 LFM	Aluminum	Push Pin	Rectangular Angled Fins	27 mm	1.063 in	LGA	3.976 in	101 mm
Advanced Thermal Solutions Inc. ATS-57003-C1-R0	Black Anodized	3.7 in	94 mm	Top Mount	1.4 °C/W	Aluminum	Push Pin	Fins Square	27 mm	1.063 in	LGA	3.7 in	93.98 mm
Advanced Thermal Solutions Inc. ATS-57001-C1-R0	Black Anodized	2.205 "	56 mm	Top Mount	1 °C/W 200 LFM	Aluminum	Push Pin	Angled Fins Square			LGA		56 mm	2.205 in	31 mm	1.22 in
