ATS-57001-C1-R0

Active

Advanced Thermal Solutions Inc.

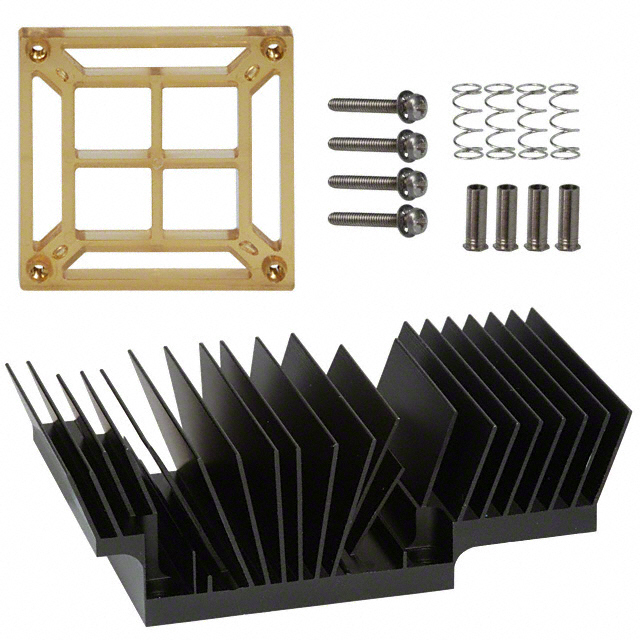

HEAT SINK 56MM X 56MM X 31MM

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT SINK 56MM X 56MM X 31MM

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-57001-C1-R0

Attachment Method	Push Pin
Fin Height	31 mm
Fin Height	1.22 in
Length [x]	56 mm
Length [x]	2.205 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	LGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	200 LFM, 1 °C/W
Type	Top Mount
Width [x]	2.205 in
Width [x]	56 mm

Part	Material Finish	Length [x]	Length [x]	Type	Thermal Resistance @ Forced Air Flow	Material	Attachment Method	Shape	Fin Height [z]	Fin Height [z]	Package Cooled	Width [x]	Width [x]	Width [x]	Fin Height	Fin Height
Advanced Thermal Solutions Inc. ATS-57002-C1-R0	Black Anodized	3.7 in	94 mm	Top Mount	1 °C/W 200 LFM	Aluminum	Push Pin	Rectangular Angled Fins	27 mm	1.063 in	LGA	3.976 in	101 mm
Advanced Thermal Solutions Inc. ATS-57003-C1-R0	Black Anodized	3.7 in	94 mm	Top Mount	1.4 °C/W	Aluminum	Push Pin	Fins Square	27 mm	1.063 in	LGA	3.7 in	93.98 mm
Advanced Thermal Solutions Inc. ATS-57001-C1-R0	Black Anodized	2.205 "	56 mm	Top Mount	1 °C/W 200 LFM	Aluminum	Push Pin	Angled Fins Square			LGA		56 mm	2.205 in	31 mm	1.22 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink LGA Aluminum Top Mount
