SJ-63516

Obsolete

CUI Devices

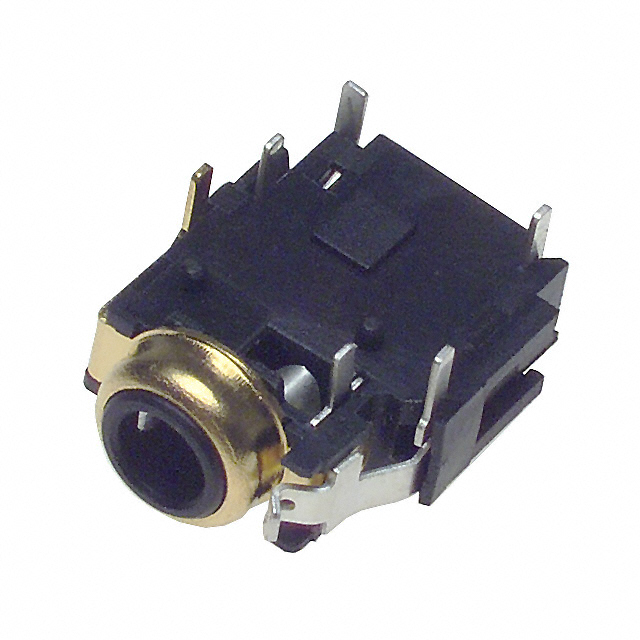

CONN JACK 6COND 3.5MM R/A

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN JACK 6COND 3.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SJ-63516

Actual Diameter [diameter]	0.142 in
Actual Diameter [diameter]	3.6 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	300 mA
Gender	Female
Industry Recognized Mating Diameter	0.141 "
Industry Recognized Mating Diameter	0.125 "
Industry Recognized Mating Diameter	3.5 mm
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	6 Contacts
Shielding	Unshielded
Signal Lines	6 Conductor
Termination	Solder
Voltage - Rated	16 V

Part	Shielding	Connector Type	Termination	Contact Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Gender	Voltage - Rated	Signal Lines	Contact Material - Plating	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts	Mounting Type	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Thread Size	Mating Length/Depth	Mating Length/Depth	Contact Material - Plating [custom]	Housing Material
CUI Devices SJ-63516	Unshielded	Phone Jack	Solder	Brass	0.141 "	0.125 "	3.5 mm	Female	16 V	6 Conductor	Tin	Black	0.142 in	3.6 mm	6 Contacts	Through Hole Right Angle	300 mA
CUI Devices SJ-63013G	Unshielded	Phone Jack	Solder Eyelet(s)	Brass Phosphor Bronze				Female	12 VDC	Stereo		Black Silver	0.252 "	6.4 mm			1 A	Cover Mounting Hardware Thread Lock	70 °C	-25 °C	Single Switch	Brass	3	5	M9x0.75	31 mm	1.22 in	Silver	Polyoxymethylene (POM)
CUI Devices SJ-63072J	Unshielded	Phone Jack	Solder	Phosphor Bronze				Female	12 VDC	Mono		Black			2 Conductors 4 Contacts	Through Hole Right Angle	1 A	Mounting Hardware Thread Lock	70 °C	-25 °C	Two Switches				7/16"-20	31 mm	1.22 in	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack 6 Conductor Connector Solder
