SJ-63072J

Active

CUI Devices

AUDIO JACK, 6.35 MM, HORIZONTAL,

Search across all available documentation for this part.

Active

CUI Devices

AUDIO JACK, 6.35 MM, HORIZONTAL,

Technical Specifications

Parameters and characteristics for this part

Specification	SJ-63072J

Body Color	Black
Connector Type	Phone Jack
Contact Material	Phosphor Bronze
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	1 A
Features	Thread Lock, Mounting Hardware
Gender	Female
Internal Switch(s)	Two Switches
Mating Length/Depth	31 mm
Mating Length/Depth	1.22 in
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	4 Contacts, 2 Conductors
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
Thread Size	7/16"-20
Voltage - Rated	12 VDC

Part	Shielding	Connector Type	Termination	Contact Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Gender	Voltage - Rated	Signal Lines	Contact Material - Plating	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts	Mounting Type	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Thread Size	Mating Length/Depth	Mating Length/Depth	Contact Material - Plating [custom]	Housing Material
CUI Devices SJ-63516	Unshielded	Phone Jack	Solder	Brass	0.141 "	0.125 "	3.5 mm	Female	16 V	6 Conductor	Tin	Black	0.142 in	3.6 mm	6 Contacts	Through Hole Right Angle	300 mA
CUI Devices SJ-63013G	Unshielded	Phone Jack	Solder Eyelet(s)	Brass Phosphor Bronze				Female	12 VDC	Stereo		Black Silver	0.252 "	6.4 mm			1 A	Cover Mounting Hardware Thread Lock	70 °C	-25 °C	Single Switch	Brass	3	5	M9x0.75	31 mm	1.22 in	Silver	Polyoxymethylene (POM)
CUI Devices SJ-63072J	Unshielded	Phone Jack	Solder	Phosphor Bronze				Female	12 VDC	Mono		Black			2 Conductors 4 Contacts	Through Hole Right Angle	1 A	Mounting Hardware Thread Lock	70 °C	-25 °C	Two Switches				7/16"-20	31 mm	1.22 in	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

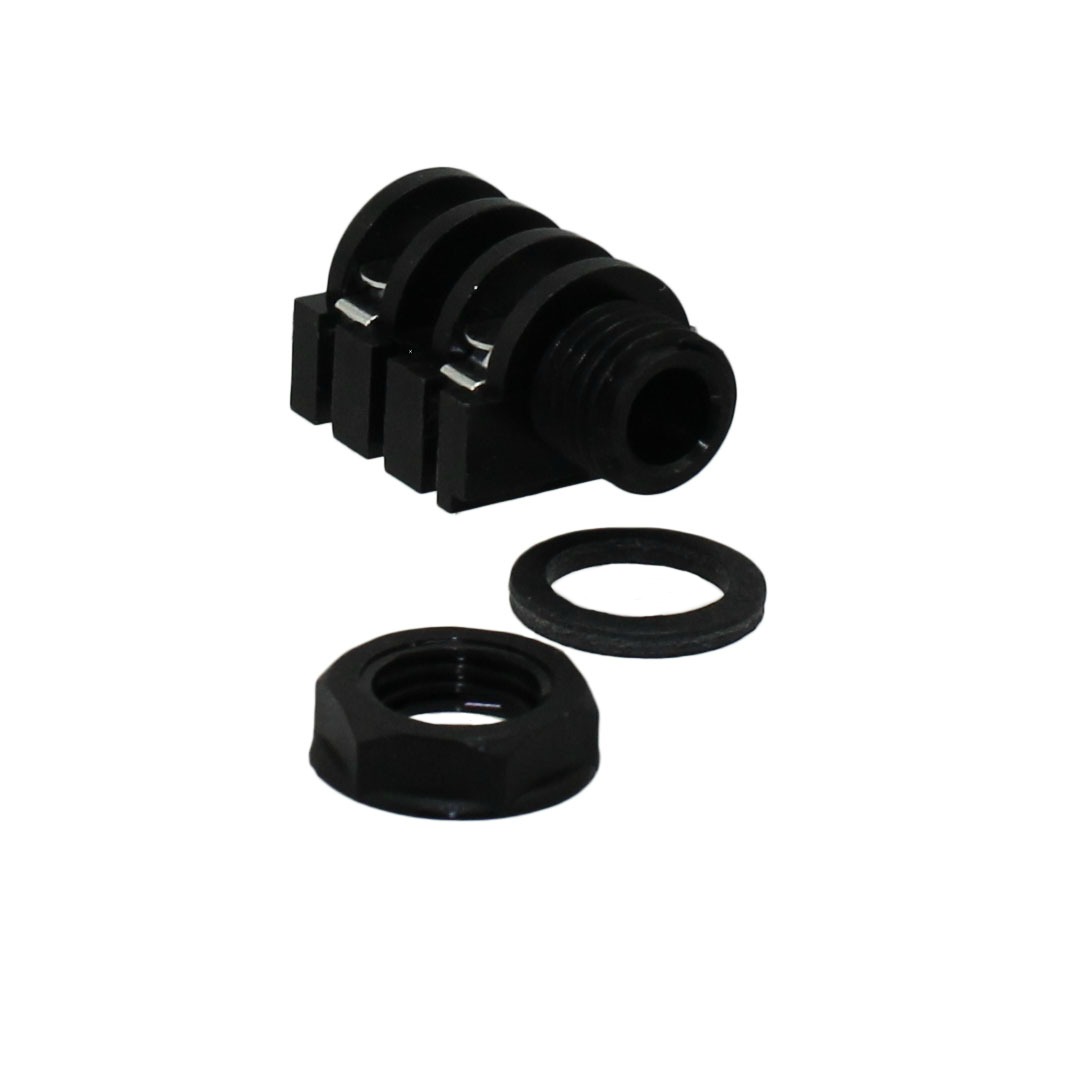

6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
