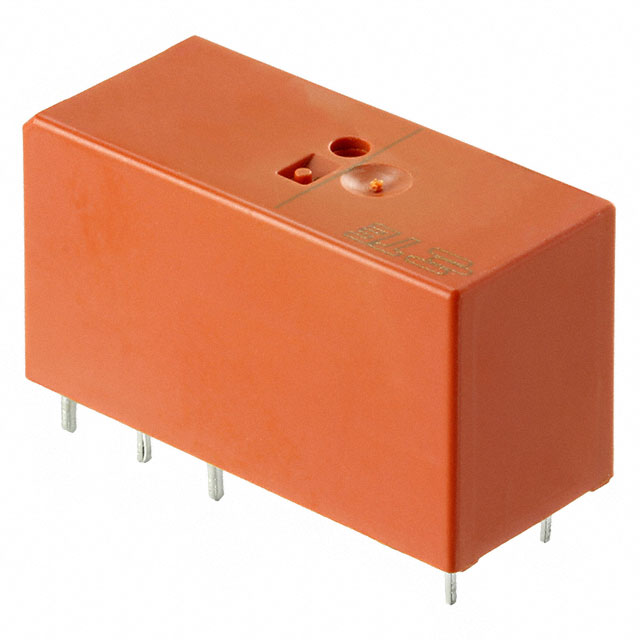

RTE24005
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTE24005
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTE24005 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 80.6 mA |
| Coil Insulation | Class F |
| Coil Resistance | 62 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.92 | |
| 20 | $ 4.61 | |||
| 40 | $ 3.90 | |||
| 100 | $ 3.69 | |||
| 260 | $ 3.28 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 2.87 | |||
Description
General part information
RTE240 Series
General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole
