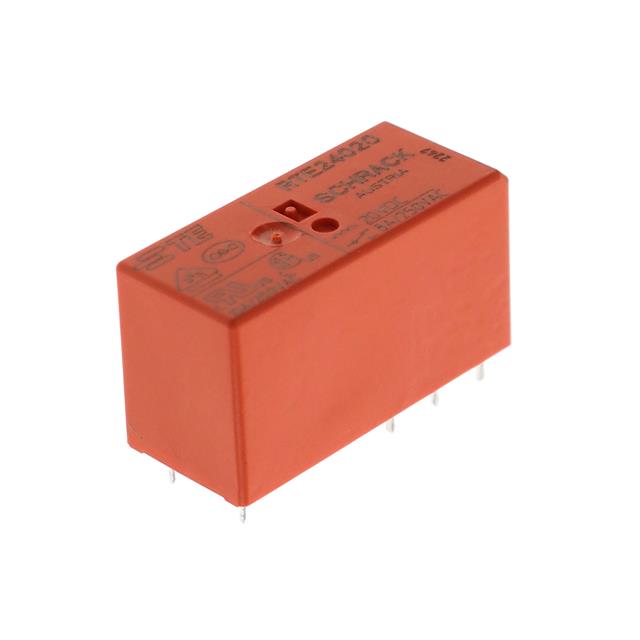

1393243-7

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1393243-7

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1393243-7

Approval Agency	cURus, CQC, VDE, CSA
Coil Insulation	Class F
Coil Type	Non Latching
Coil Voltage	20 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Through Hole
Must Operate Voltage	14 VDC
Must Release Voltage	0.2 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

RTE240 Series

Part	Contact Material	Must Operate Voltage	Contact Form	Release Time	Coil Type	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Relay Type	Must Release Voltage	Seal Rating	Load - Max Switching	Switching Voltage [Max]	Approval Agency	Mounting Type	Termination Style	Contact Rating (Current)	Coil Insulation	Operate Time
TE Connectivity Potter & Brumfield Relays RTE24024	Silver Nickel (AgNi)	16.8 VDC	DPDT (2 Form C)	6 ms	Non Latching	1440 Ohms	85 °C	-40 °C	16.7 mA	24 VDC	General Purpose	2.4 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays RTE24005	Silver Nickel (AgNi)	3.5 VDC	DPDT (2 Form C)	6 ms	Non Latching	62 Ohms	85 °C	-40 °C	80.6 mA	5 VDC	General Purpose	0.5 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays RTE24024F	Silver Nickel (AgNi)	16.8 VDC	DPDT (2 Form C)	6 ms	Non Latching	1440 Ohms	85 °C	-40 °C	16.7 mA	24 VDC	General Purpose	2.4 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays RTE24018	Silver Nickel (AgNi)	12.6 VDC	DPDT (2 Form C)	6 ms	Non Latching	810 Ohms	85 °C	-40 °C	22.2 mA	18 VDC	General Purpose	1.8 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms
TE Connectivity Potter & Brumfield Relays 1393243-7	Silver Nickel (AgNi)	14 VDC	DPDT (2 Form C)	6 ms	Non Latching		85 °C	-40 °C		20 VDC	General Purpose	0.2 VDC	Sealed - Fully	3200 VA	400 VAC	CQC CSA cURus VDE	Through Hole	PC Pin	8 A	Class F	8 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.36
		10	$ 3.81
		25	$ 3.61
		50	$ 3.46
		100	$ 3.32
		250	$ 3.15
		500	$ 3.02
		1000	$ 2.90

Description

General part information

RTE240 Series

General Purpose Relay DPDT (2 Form C) 20VDC Coil Through Hole
