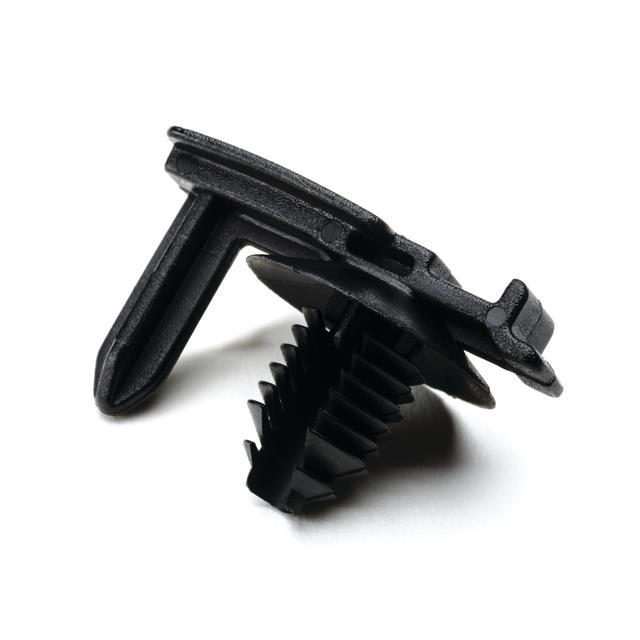

155-30702

Active

HELLERMANNTYTON

CONN. CLIP W/FIR TREE, 0.7 - 5.1 MM PANEL THICK., 6.4 - 7.1 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CONN. CLIP W/FIR TREE, 0.7 - 5.1 MM PANEL THICK., 6.4 - 7.1 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	155-30702

Bundle Center to Mounting Center	0.492 "
Bundle Center to Mounting Center	12.5 mm
Color	Black
Features	UV Resistant, Heat Stabilized, Impact Resistant
Height [z]	5.59 mm
Height [z]	0.22 in
Length	1.063 in
Length	27 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Cupped, Fir Tree
Panel Hole Size [Max]	7.1 mm
Panel Hole Size [Max]	0.28 in
Panel Hole Size [Min]	6.4 mm
Panel Hole Size [Min]	0.252 in
Panel Thickness [Max]	5.1 mm, 0.201 "
Panel Thickness [Min]	0.028 in, 0.7 mm
Type	Connector, Clip
Type Attributes	Turnstop
Width [y]	0.394 in
Width [y]	10 mm

Part	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Max]	Length	Length	Width [y]	Width [y]	Panel Thickness [Max]	Panel Thickness [Min]	Features	Color	Mounting Type	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Type	Material	Height [z]	Height [z]	Material Flammability Rating	Type Attributes	Material Thickness	Material Thickness	Panel Thickness [Min]	Panel Thickness [Max]	Length [x]	Length [x]	Width	Width
HELLERMANNTYTON 155-30702	6.4 mm	7.1 mm	0.252 in	0.28 in	1.063 in	27 mm	0.394 in	10 mm	0.201 " 5.1 mm	0.028 in 0.7 mm	Heat Stabilized Impact Resistant UV Resistant	Black	Cupped Fir Tree	0.492 "	12.5 mm	Clip Connector	Polyamide (PA66) Nylon 6/6	5.59 mm	0.22 in	UL94 HB	Turnstop
HELLERMANNTYTON 155-30802	6.3 mm	7 mm	0.248 in	0.276 in					0.201 "	0.024 in	Heat Stabilized Impact Resistant UV Resistant	Black	Fir Tree			Bundling Clip	Polyamide (PA66) Nylon 6/6			UL94 HB		0.059 in	1.5 mm	0.6 mm	5.1 mm	55 mm	2.165 in	9 mm	0.354 "
