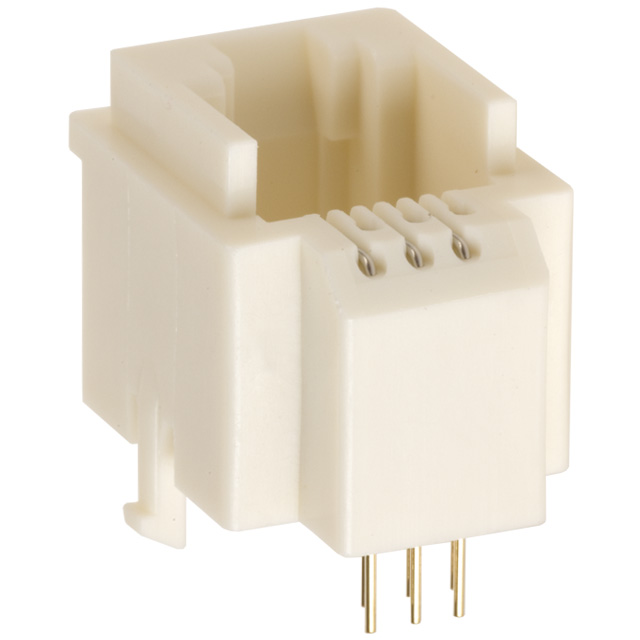

TM3RA-66(50)

Active

Hirose Electric USA, Inc.

CONN MOD JACK 6P6C VERT UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TM3RA-66(50)

Active

Hirose Electric USA, Inc.

CONN MOD JACK 6P6C VERT UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TM3RA-66(50)

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

TM3R Series

Part	Tab Direction	Termination	Shielding	Mounting Type	Contact Finish	Number of Positions/Contacts	LED Color	Housing Material	Connector Type	Orientation	Contact Material	Number of Rows	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Contacts
Hirose Electric USA, Inc. TM3RA1X-62(50)	User Selectable	Solder	Unshielded	Through Hole	Gold	2 6	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1
Hirose Electric USA, Inc. TM3RA-64(50)	User Selectable	Solder	Unshielded	Through Hole	Gold		Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1	-25 °C	60 °C	6p4c
Hirose Electric USA, Inc. TM3RA1-64(50)	User Selectable	Solder	Unshielded	Through Hole	Gold		Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1			6p4c
Hirose Electric USA, Inc. TM3RA1-44(67)	User Selectable	Solder	Unshielded	Through Hole	Gold		Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1			4p4c
Hirose Electric USA, Inc. TM3RA-66(50)	User Selectable	Solder	Unshielded	Through Hole	Gold		Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1	-25 °C	60 °C	6p6c (RJ11 RJ12 RJ14 RJ25)
Hirose Electric USA, Inc. TM3RA1-62(50)	User Selectable	Solder	Unshielded	Through Hole	Gold	2 6	Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1
Hirose Electric USA, Inc. TM3RAX-88(50)	User Selectable	Solder	Unshielded	Through Hole	Gold		Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1			8p8c (RJ45 Ethernet)
Hirose Electric USA, Inc. TM3RA-44(50)	User Selectable	Solder	Unshielded	Through Hole	Gold		Does Not Contain LED	Polybutylene Terephthalate (PBT)	Jack	Vertical	Phosphor Bronze	1	1	-25 °C	60 °C	4p4c

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.81
		10	$ 2.55
		25	$ 2.42
		40	$ 2.36
		120	$ 2.25
		240	$ 1.97
		480	$ 1.91
		960	$ 1.63
		2400	$ 1.52

Description

General part information

TM3R Series

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded
