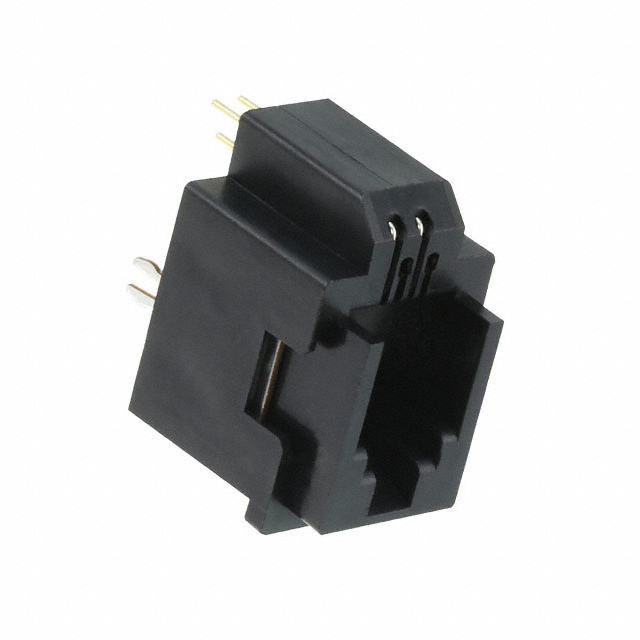

TM3RA1-44(67)
Hirose Electric USA, Inc.
CONN MOD JACK 4P4C VERT UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM3RA1-44(67)
Hirose Electric USA, Inc.
CONN MOD JACK 4P4C VERT UNSHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM3RA1-44(67) |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 4p4c |
| Number of Rows | 1 |
| Orientation | Vertical |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Solder |
TM3R Series
| Part | Tab Direction | Termination | Shielding | Mounting Type | Contact Finish | Number of Positions/Contacts | LED Color | Housing Material | Connector Type | Orientation | Contact Material | Number of Rows | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | 2 6 | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | |||
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | -25 °C | 60 °C | 6p4c | |
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | 6p4c | |||
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | 4p4c | |||
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | -25 °C | 60 °C | 6p6c (RJ11 RJ12 RJ14 RJ25) | |
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | 2 6 | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | |||
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | 8p8c (RJ45 Ethernet) | |||
Hirose Electric USA, Inc. | User Selectable | Solder | Unshielded | Through Hole | Gold | Does Not Contain LED | Polybutylene Terephthalate (PBT) | Jack | Vertical | Phosphor Bronze | 1 | 1 | -25 °C | 60 °C | 4p4c |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 42 | $ 1.87 | |
Description
General part information
TM3R Series
Jack Modular Connector 4p4c (RJ9, RJ10, RJ22) Vertical Unshielded
