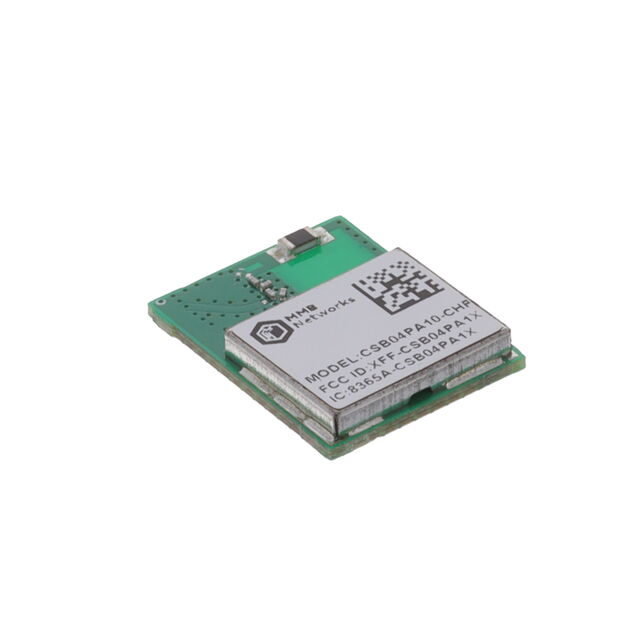

CSB04PA10-CHP-N
ActiveMMB Networks
RF TXRX MOD 802.15.4 BT CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSB04PA10-CHP-N
ActiveMMB Networks
RF TXRX MOD 802.15.4 BT CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSB04PA10-CHP-N |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 14 mA |
| Current - Transmitting | 138 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.4835 GHz |
| Frequency [Min] | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 19.2 dBm |
| Protocol | Zigbee®, Thread, Bluetooth v5.0 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | EFR32MG13 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.76 | |
| 10 | $ 15.40 | |||
| 25 | $ 14.76 | |||
| 100 | $ 13.01 | |||
| 250 | $ 12.37 | |||
| 500 | $ 11.57 | |||
| Digi-Reel® | 1 | $ 16.76 | ||
| 10 | $ 15.40 | |||
| 25 | $ 14.76 | |||
| 100 | $ 13.01 | |||
| 250 | $ 12.37 | |||
| 500 | $ 11.57 | |||
| Tape & Reel (TR) | 1000 | $ 9.88 | ||
Description
General part information
CSB04 Series
802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz ~ 2.4835GHz Integrated, Chip Surface Mount
