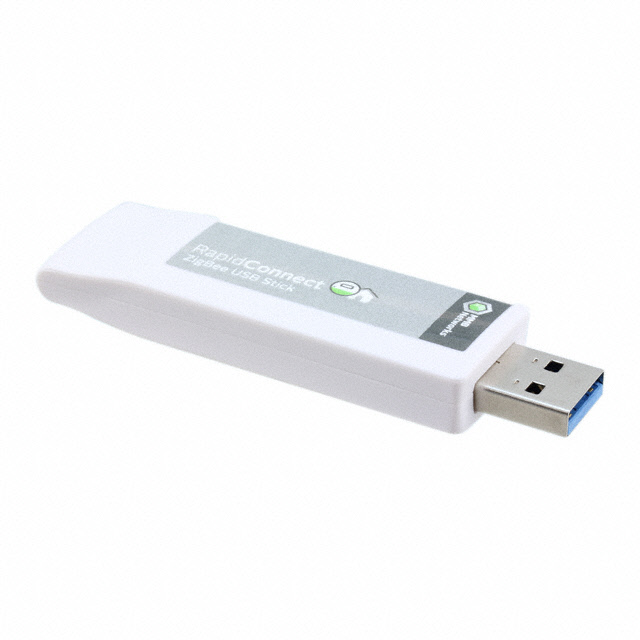

CSB04PA10-USB

Obsolete

MMB Networks

ZIGBEE 3.0, THREAD, BLUETOOTH US

Search across all available documentation for this part.

Obsolete

MMB Networks

ZIGBEE 3.0, THREAD, BLUETOOTH US

Technical Specifications

Parameters and characteristics for this part

Part	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Mounting Type	Sensitivity	Frequency [Min]	Frequency [Max]	Data Rate	RF Family/Standard	Modulation	Current - Receiving	Protocol	Antenna Type	Power - Output	Utilized IC / Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Modulation or Protocol	Applications	Data Rate (Max) [Max]
MMB Networks CSB04PA10-CHP-N	UART	85 °C	-40 °C	138 mA	Surface Mount	-103 dBm	2.4 GHz	2.4835 GHz	2 Mbps	802.15.4 Bluetooth	GFSK	14 mA	Bluetooth v5.0 Thread Zigbee®	Integrated Chip	19.2 dBm	EFR32MG13	Module	3.6 V	2 V
MMB Networks CSB04PA10-USB						-103 dBm	2.4 GHz	2.4835 GHz							19.2 dBm			3.6 V	2 V	USB	Bluetooth v5.0 Thread Zigbee®	Bluetooth	921 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF 2.4GHz ~ 2.4835GHz Bluetooth v5.0, Thread, Zigbee® USB 921kbps

Technical documentation and resources

No documents available
