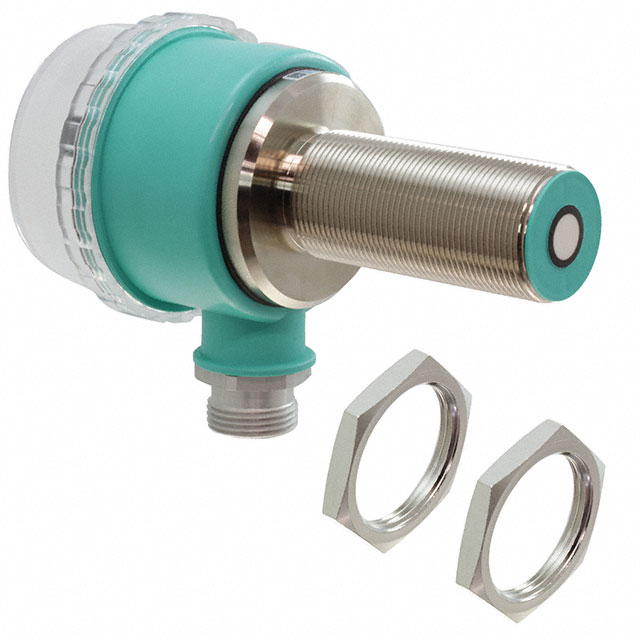

UB500-30GM65-WS3-BHMS5
ActivePEPPERL+FUCHS
ULTRASONIC SEN 70-500MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UB500-30GM65-WS3-BHMS5
ActivePEPPERL+FUCHS
ULTRASONIC SEN 70-500MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UB500-30GM65-WS3-BHMS5 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP65 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | SCR-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance [Max] | 500 mm |
| Sensing Distance [Max] | 19.685 in |
| Sensing Distance [Min] | 2.756 " |
| Sensing Distance [Min] | 70 mm |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 140 V |
| Voltage - Supply [Min] | 90 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UB500 Series
ULTRASONIC SEN 70-500MM
Documents
Technical documentation and resources
