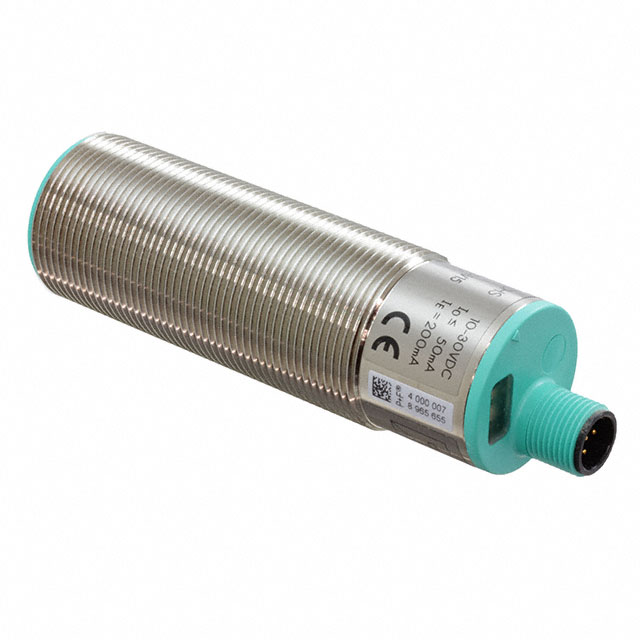

UB500-30GM-E5-V15

Active

PEPPERL+FUCHS

PROXIMITY SENSOR/PROXIMITY SWITCH ROHS

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PROXIMITY SENSOR/PROXIMITY SWITCH ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Material - Body	Shielding	Termination Style	Indicator [custom]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Package / Case	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]
PEPPERL+FUCHS UB500-30GM-E5-V15	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NC/NO	30 VDC	10 VDC	Ultrasonic	70 °C	-25 °C	IP65	Cylinder Threaded - M30	1.181 "	19.685 in	30 mm	500 mm
PEPPERL+FUCHS UB500-30GM65-WS3-BHMS5	Nickel-Plated Brass	Unshielded	Connector	LED	SCR-NO 3-Wire	140 V	90 VDC	Ultrasonic	70 °C	-25 °C	IP65	Cylinder Threaded - M30	2.756 "	19.685 in	70 mm	500 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PROXIMITY SENSOR/PROXIMITY SWITCH ROHS
