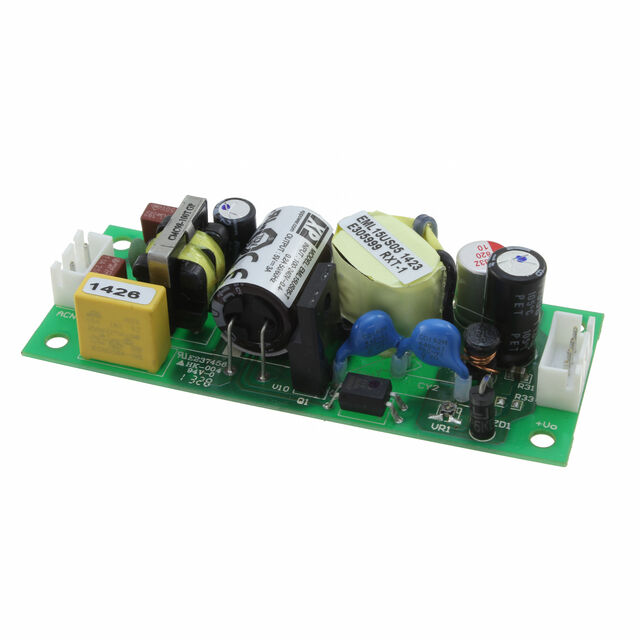

EML15US24-T

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 15 W, 85V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

EML15US24-T

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 15 W, 85V AC TO 264V AC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EML15US24-T

Applications	Medical
Current - Output 1	630 mA
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	3.1 in
Size / Dimension [x]	78.7 mm
Size / Dimension [y]	31.7 mm
Size / Dimension [y]	1.25 in
Size / Dimension [z]	0.78 in
Size / Dimension [z]	20 mm
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

EML15 Series

Part	Mounting Type	Efficiency	Applications	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Type	Current - Output 1	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]
XP POWER EML15US15-S	Chassis Mount	80 %	Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	15 V	Open Frame	1 A	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US15-T	Chassis Mount	80 %	Medical	1	0.78 in	3.1 in		1.25 in		78.7 mm	15 V	Open Frame	1 A	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V	31.7 mm	20 mm
XP POWER EML15US24-T	Chassis Mount		Medical	1	0.78 in	3.1 in		1.25 in		78.7 mm	24 V	Open Frame	630 mA	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V	31.7 mm	20 mm
XP POWER EML15US03-S	Chassis Mount	75 %	Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	3.3 V	Open Frame	3 A	10 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US36-S	Chassis Mount		Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	36 V	Open Frame	420 mA	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US12-S	Chassis Mount	80 %	Medical	1	1.04 in	3.3 "	26.4 mm	1.36 "	34.5 mm	84 mm	12 V	Enclosed	1.25 A	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US24-S	Chassis Mount		Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	24 V	Open Frame	630 mA	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.84
		5	$ 33.79
		10	$ 32.75
		25	$ 31.36
		100	$ 29.27
Newark	Each	5	$ 33.14
		10	$ 32.11
		25	$ 30.74
		100	$ 28.69

Description

General part information

EML15 Series

The EML15 is a series of open frame and encapsulated AC-DC single output power supplies designed for medical applications. The series provides a number of flexible mechanical options including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With approvals to world wide medical safety standards, compliance with class B for both conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into the latest healthcare products and applications.
