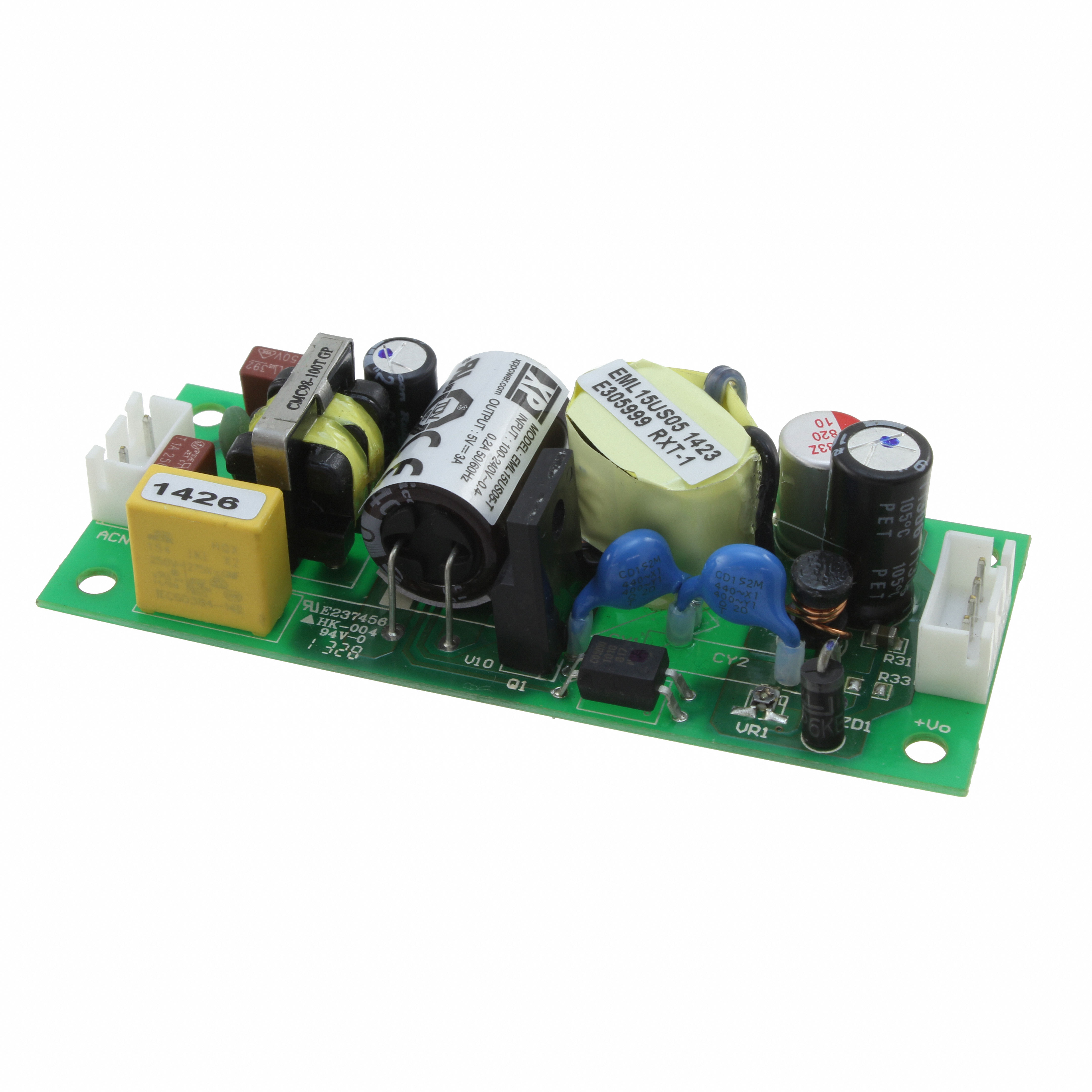

EML15US15-T

Active

XP POWER

AC/DC CONVERTER 15V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EML15US15-T

Active

XP POWER

AC/DC CONVERTER 15V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EML15US15-T

Applications	Medical
Current - Output 1	1 A
Efficiency	80 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	3.1 in
Size / Dimension [x]	78.7 mm
Size / Dimension [y]	31.7 mm
Size / Dimension [y]	1.25 in
Size / Dimension [z]	0.78 in
Size / Dimension [z]	20 mm
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

EML15 Series

Part	Mounting Type	Efficiency	Applications	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Type	Current - Output 1	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]
XP POWER EML15US15-S	Chassis Mount	80 %	Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	15 V	Open Frame	1 A	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US15-T	Chassis Mount	80 %	Medical	1	0.78 in	3.1 in		1.25 in		78.7 mm	15 V	Open Frame	1 A	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V	31.7 mm	20 mm
XP POWER EML15US24-T	Chassis Mount		Medical	1	0.78 in	3.1 in		1.25 in		78.7 mm	24 V	Open Frame	630 mA	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V	31.7 mm	20 mm
XP POWER EML15US03-S	Chassis Mount	75 %	Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	3.3 V	Open Frame	3 A	10 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US36-S	Chassis Mount		Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	36 V	Open Frame	420 mA	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US12-S	Chassis Mount	80 %	Medical	1	1.04 in	3.3 "	26.4 mm	1.36 "	34.5 mm	84 mm	12 V	Enclosed	1.25 A	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V
XP POWER EML15US24-S	Chassis Mount		Medical	1	1.04 in	2.95 in	26.4 mm	1.36 "	34.5 mm	75 mm	24 V	Open Frame	630 mA	15 W	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	4000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.16
		5	$ 33.14
		10	$ 32.11
		25	$ 30.74
		100	$ 28.69

Description

General part information

EML15 Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
