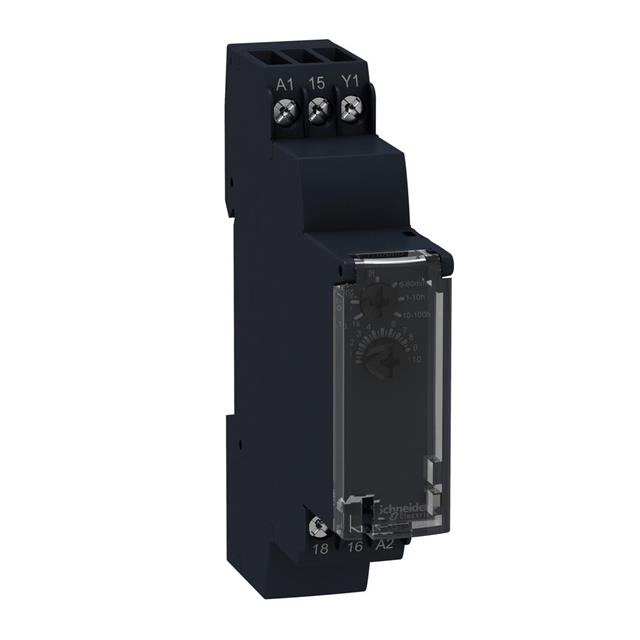

RE17LCBM

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, 0.1 S, 100 H, ZELIO RE17 SERIES, SPST, 700 MA

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, 0.1 S, 100 H, ZELIO RE17 SERIES, SPST, 700 MA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Contact Rating @ Voltage	Delay Time [Max]	Delay Time [Min]	Function	Termination Style	Mounting Type	Relay Type	Timing Initiate Method	Timing Adjustment Method
SQUARE D BY SCHNEIDER ELECTRIC RE17LAMWS	24 VAC	240 VAC	20 A 250 VAC	100 Hrs	0.1 Sec	On-Delay	Spring Terminal	DIN Rail	Solid State Relay	Input Voltage	Screwdriver Slot
SQUARE D BY SCHNEIDER ELECTRIC RE17LCBM	24 VAC	240 VAC	20 A 250 VAC	100 Hrs	0.1 Sec	Off-Delay	Screw Terminal	DIN Rail	Solid State Relay	Input Voltage	Screwdriver Slot

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Off-Delay Time Delay Relay 0.1 Sec ~ 100 Hrs Delay 20A @ 250VAC DIN Rail
