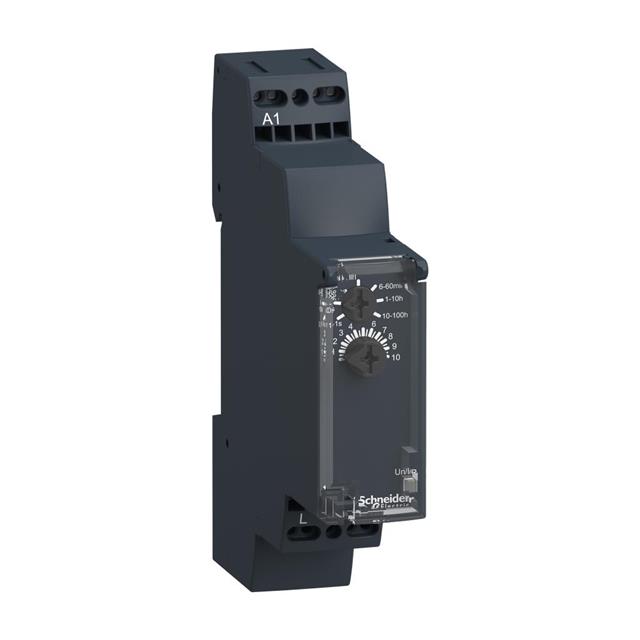

RE17LAMWS
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
RELAY TIME DELAY 100HR 20A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RE17LAMWS |
|---|---|
| Contact Rating @ Voltage | 250 VAC, 20 A |
| Delay Time [Max] | 100 Hrs |
| Delay Time [Min] | 0.1 Sec |
| Function | On-Delay |
| Mounting Type | DIN Rail |
| Relay Type | Solid State Relay |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.34 | |
Description
General part information
RE17L Series
On-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Hrs Delay 20A @ 250VAC/DC DIN Rail
