701016
ActiveTE Connectivity Measurement Specialties

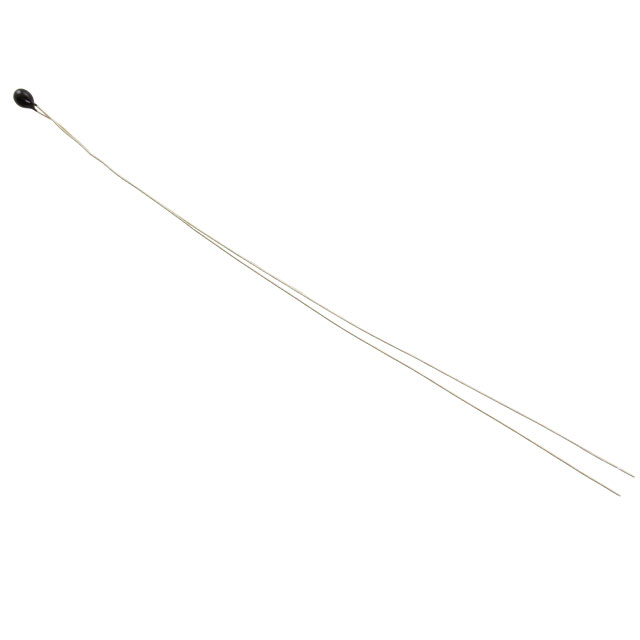

THERMISTOR NTC 10KOHM 3978K BEAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
701016
ActiveTE Connectivity Measurement Specialties
THERMISTOR NTC 10KOHM 3978K BEAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 701016 |
|---|---|
| B Value Tolerance | 0.4 % |
| B0/50 | 3891 K |
| B25/85 | 3978 K |
| Length - Lead Wire | 3 in |
| Length - Lead Wire | 76.2 mm |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | Bead |
| Resistance in Ohms @ 25°C | 10k |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.04 | |
| 5 | $ 17.74 | |||
| 10 | $ 16.49 | |||
| 25 | $ 14.96 | |||
| 50 | $ 13.91 | |||
| 100 | $ 12.92 | |||
| 500 | $ 10.91 | |||
Description
General part information
7010 Series
NTC Thermistor 10k Bead
