701008

Active

TE Connectivity Measurement Specialties

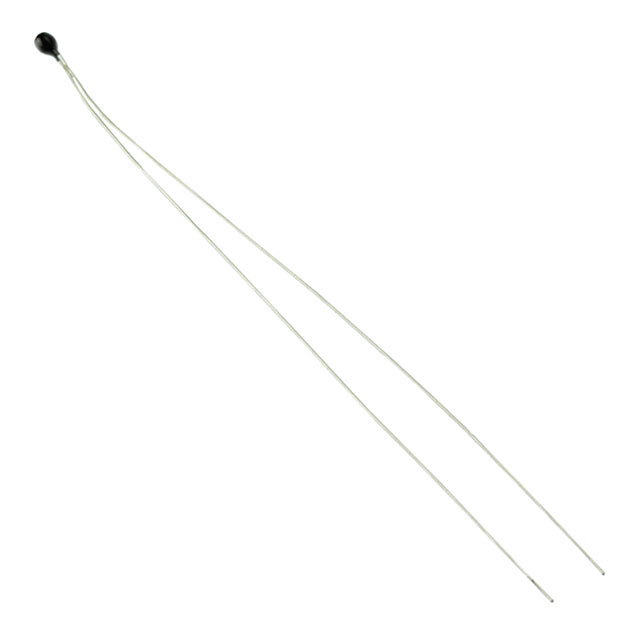

THERMISTOR NTC 30KOHM 3810K BEAD

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

THERMISTOR NTC 30KOHM 3810K BEAD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Length - Lead Wire	Length - Lead Wire	B Value Tolerance	Resistance in Ohms @ 25°C	B25/85	Package / Case	Resistance in Ohms @ 25°C	B0/50	Operating Temperature [Max]	Operating Temperature [Min]	Resistance Tolerance
TE Connectivity Measurement Specialties 701008	Free Hanging	3 in	76.2 mm	0.8 %	30 k	3943 KB	Bead
TE Connectivity Measurement Specialties 701016	Free Hanging	3 in	76.2 mm	0.4 %		3978 K	Bead	10k	3891 K	150 °C	-50 °C
TE Connectivity Measurement Specialties 701032	Free Hanging	3 in	76.2 mm	0.4 %	30 k	3943 KB	Bead					0.1 °C
TE Connectivity Measurement Specialties 701036	Free Hanging	3 in	76.2 mm	0.4 %		3978 K	Bead	10k	3891 K	75 ░C	-80 °C	0.1 °C
TE Connectivity Measurement Specialties 701030	Free Hanging	3 in	76.2 mm	0.4 %		3976 K	Bead		3891 K	150 °C	-55 °C	0.1 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NTC Thermistor 30k Bead
