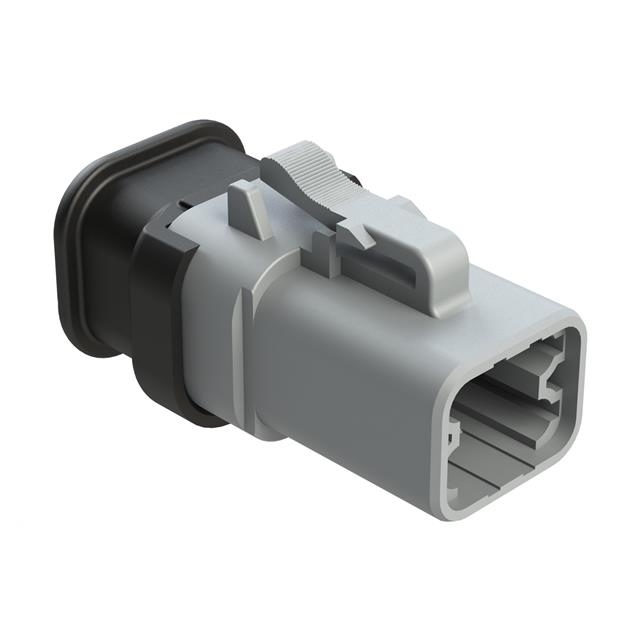

ATP06-4S-SR01
ActiveAmphenol Sine Systems Corp
4 POSITION PLUG, SOCKET, STRAIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATP06-4S-SR01
ActiveAmphenol Sine Systems Corp
4 POSITION PLUG, SOCKET, STRAIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP06-4S-SR01 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Cap (Cover), IP69K, Strain Relief, IP68, Sealed |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
ATP06-4S Series
| Part | Number of Positions | Note | Contact Type | Features | Connector Type | Fastening Type | Contact Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Color | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 4 | Contacts Not Included | Female Socket | Sealed | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Gray | 2 |
Amphenol Sine Systems Corp | 4 | Female Socket | Cap (Cover) IP68 IP69K Reduced Wire Seals | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Black | 2 | |
Amphenol Sine Systems Corp | 4 | Contacts Not Included | Female Socket | Sealed | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Black | 2 |
Amphenol Sine Systems Corp | 4 | Female Socket | Cap (Cover) IP68 IP69K Reduced Wire Seals | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Gray | 2 | |
Amphenol Sine Systems Corp | 4 | Female Socket | Cap (Cover) IP68 IP69K Sealed Strain Relief | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Gray | 2 | |
Amphenol Sine Systems Corp | 4 | Female Socket | Cap (Cover) IP68 IP69K Sealed Strain Relief | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Black | 2 | |
Amphenol Sine Systems Corp | 4 | Female Socket | Cap (Cover) IP68 IP69K Sealed Strain Relief | Plug | Latch Lock | Crimp | Free Hanging (In-Line) | -55 °C | 125 °C | Thermoplastic | Black | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.28 | |
| 10 | $ 2.98 | |||
| 25 | $ 2.82 | |||
| 50 | $ 2.76 | |||
| 100 | $ 2.63 | |||
| 350 | $ 2.30 | |||
| 700 | $ 2.23 | |||
| 1050 | $ 1.90 | |||
| 2800 | $ 1.77 | |||
Description
General part information
ATP06-4S Series
4 Rectangular Connectors - Housings Plug Gray
Documents
Technical documentation and resources
