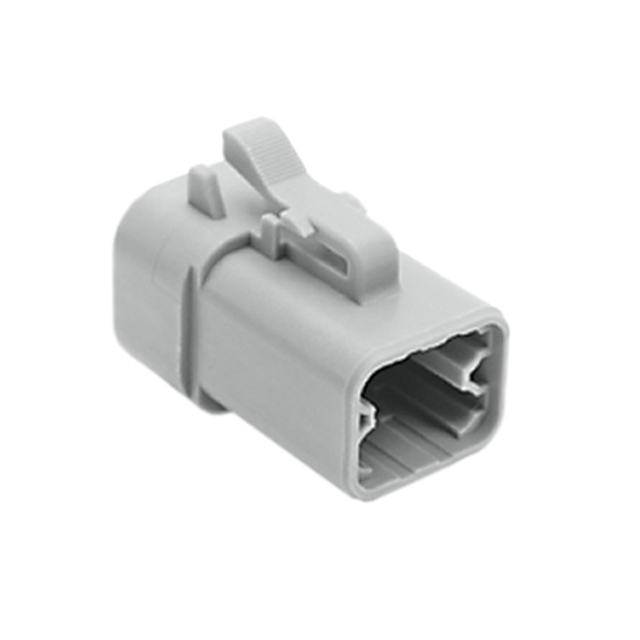

ATP06-4S-RD01

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 4POS

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 4POS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Note	Contact Type	Features	Connector Type	Fastening Type	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Color	Number of Rows
Amphenol Sine Systems Corp ATP06-4S-RD01	4	Contacts Not Included	Female Socket	Sealed	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Gray	2
Amphenol Sine Systems Corp ATP06-4S-MM01BLK	4		Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2
Amphenol Sine Systems Corp ATP06-4S-RD01BK	4	Contacts Not Included	Female Socket	Sealed	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2
Amphenol Sine Systems Corp ATP06-4S-MM01	4		Female Socket	Cap (Cover) IP68 IP69K Reduced Wire Seals	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Gray	2
Amphenol Sine Systems Corp ATP06-4S-SR01	4		Female Socket	Cap (Cover) IP68 IP69K Sealed Strain Relief	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Gray	2
Amphenol Sine Systems Corp ATP06-4S-SR01BK	4		Female Socket	Cap (Cover) IP68 IP69K Sealed Strain Relief	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2
Amphenol Sine Systems Corp ATP06-4S-SR02BK	4		Female Socket	Cap (Cover) IP68 IP69K Sealed Strain Relief	Plug	Latch Lock	Crimp	Free Hanging (In-Line)	-55 °C	125 °C	Thermoplastic	Black	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	550	$ 2.74

General part information

4 Rectangular Connectors - Housings Plug Gray
