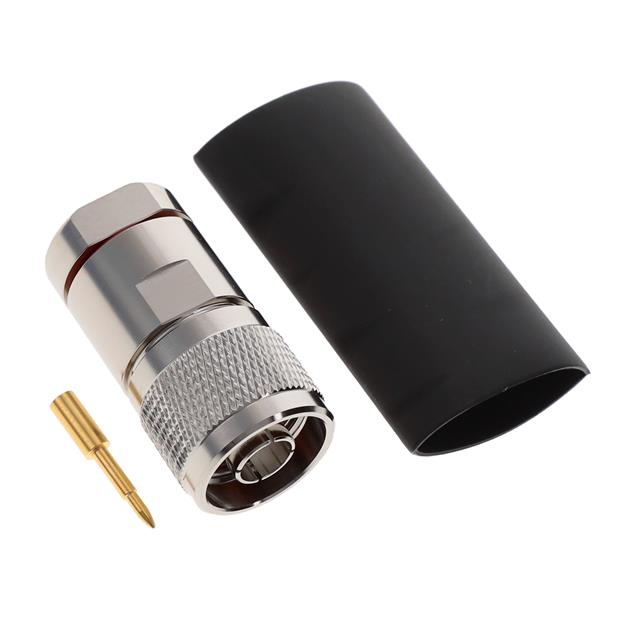

TC-400-NMC-2

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CLAMP CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

TC-400-NMC-2

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CLAMP CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC-400-NMC-2

Body Finish	Nickel
Cable Group	LMR-400
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Frequency - Max [Max]	2.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-5 °C
Shield Termination	Clamp

TC-400 Series

Part	Housing Color	Cable Group	Connector Style	Frequency - Max [Max]	Dielectric Material	Shield Termination	Connector Type	Body Finish	Impedance	Mounting Type	Number of Ports	Contact Termination	Center Contact Plating	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Voltage Rating	Fastening Type	Mating Cycles	Insertion Loss	Mounting Feature
Amphenol Times Microwave Systems TC-400-QDSM	Silver	LMR-400	QDS	3 GHz	Polytetrafluoroethylene (PTFE)	Clamp	Male Pin Plug	White Bronze	50 Ohms	Free Hanging (In-Line)	1	Solder	Gold
Amphenol Times Microwave Systems TC-400-NM-75	Silver	LMR-400-75	N Type	2.5 GHz	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	White Bronze	75 Ohms	Free Hanging (In-Line)	1	Solder	Gold	Brass	85 °C	-40 °C	Brass
Amphenol Times Microwave Systems TC-400-QNM-X	Silver	LMR-400	QN	6000 MHz	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	White Bronze	50 Ohms	Free Hanging (In-Line)	1	Solder	Gold	Brass	85 °C	-55 °C	Brass	1500 V	Snap-On	500
Amphenol Times Microwave Systems TC-400-716M-RA-D	Silver	LMR-400	7/16 DIN	3 GHz	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	White Bronze	50 Ohms	Free Hanging (In-Line) Right Angle	1	Solder	Gold	Beryllium Copper	155 °C	-55 °C	Brass	500 V		500
Amphenol Times Microwave Systems TC-400-MUHF	Silver	LMR-400	Mini UHF	1 GHz	Polyoxymethylene (POM)	Crimp	Male Pin Plug	Nickel	50 Ohms	Free Hanging (In-Line)	1	Solder	Gold	Brass	85 °C	-40 °C	Brass				0.15 dB
Amphenol Times Microwave Systems TC-400-NM-RP	Silver	LMR-400	RP-N Type	3 GHz	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Plug	Nickel	50 Ohms	Free Hanging (In-Line)	1	Solder	Gold	Beryllium Copper	85 °C	-40 °C	Brass	1000 VDC
Amphenol Times Microwave Systems TC-400-TF-X	Silver	LMR-400	TNC	6000 MHz	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	White Bronze	50 Ohms	Free Hanging (In-Line)	1	Solder	Gold	Beryllium Copper	125 °C	-55 °C	Brass	500 V		500
Amphenol Times Microwave Systems TC-400-NFC-BH (A)	Silver	LMR-400	N Type	11 GHz	Polytetrafluoroethylene (PTFE)	Clamp	Female Socket Jack	White Bronze	50 Ohms		1	Solder	Gold	Beryllium Copper	165 °C	-65 ░C	Brass					Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-400-HNM-RA	Silver	LMR-400	HN Type	3 GHz	Polytetrafluoroethylene (PTFE)	Crimp	Male Pin Plug	White Bronze	50 Ohms	Free Hanging (In-Line) Right Angle	1	Solder	Gold	Brass	155 °C	-55 °C	Brass			500
Amphenol Times Microwave Systems TC-400-NMC-2	Silver	LMR-400	N Type	2.5 GHz		Clamp	Male Pin Plug	Nickel	50 Ohms	Free Hanging (In-Line)	1	Solder	Gold		75 ░C	-5 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.86
		10	$ 14.61
		25	$ 13.85
		50	$ 13.65
		100	$ 12.04
		250	$ 11.24
		500	$ 11.00

Description

General part information

TC-400 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
