TC-400-NM-RP
ActiveAmphenol Times Microwave Systems

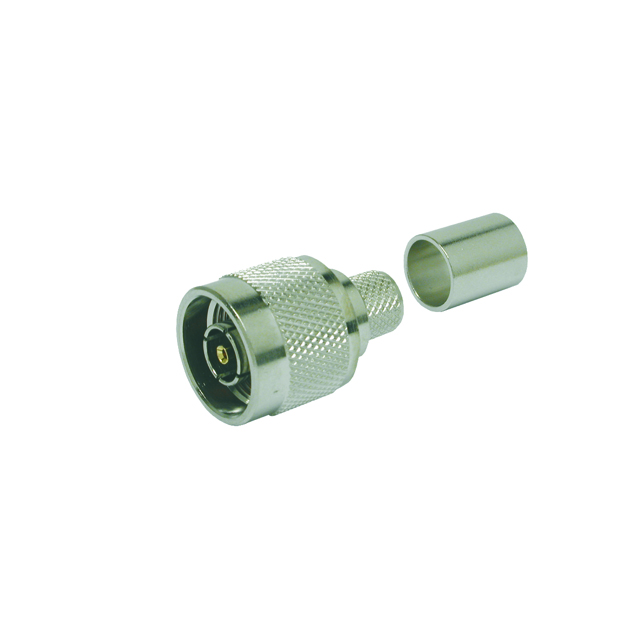

N-MALE (PLUG) CRIMP CONNECTOR, R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC-400-NM-RP
ActiveAmphenol Times Microwave Systems
N-MALE (PLUG) CRIMP CONNECTOR, R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-400-NM-RP |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-N Type |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 1000 VDC |
TC-400 Series
| Part | Housing Color | Cable Group | Connector Style | Frequency - Max [Max] | Dielectric Material | Shield Termination | Connector Type | Body Finish | Impedance | Mounting Type | Number of Ports | Contact Termination | Center Contact Plating | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Voltage Rating | Fastening Type | Mating Cycles | Insertion Loss | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems | Silver | LMR-400 | QDS | 3 GHz | Polytetrafluoroethylene (PTFE) | Clamp | Male Pin Plug | White Bronze | 50 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | |||||||||
Amphenol Times Microwave Systems | Silver | LMR-400-75 | N Type | 2.5 GHz | Polytetrafluoroethylene (PTFE) | Crimp | Male Pin Plug | White Bronze | 75 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | Brass | 85 °C | -40 °C | Brass | |||||
Amphenol Times Microwave Systems | Silver | LMR-400 | QN | 6000 MHz | Polytetrafluoroethylene (PTFE) | Crimp | Male Pin Plug | White Bronze | 50 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | Brass | 85 °C | -55 °C | Brass | 1500 V | Snap-On | 500 | ||
Amphenol Times Microwave Systems | Silver | LMR-400 | 7/16 DIN | 3 GHz | Polytetrafluoroethylene (PTFE) | Crimp | Male Pin Plug | White Bronze | 50 Ohms | Free Hanging (In-Line) Right Angle | 1 | Solder | Gold | Beryllium Copper | 155 °C | -55 °C | Brass | 500 V | 500 | |||
Amphenol Times Microwave Systems | Silver | LMR-400 | Mini UHF | 1 GHz | Polyoxymethylene (POM) | Crimp | Male Pin Plug | Nickel | 50 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | Brass | 85 °C | -40 °C | Brass | 0.15 dB | ||||
Amphenol Times Microwave Systems | Silver | LMR-400 | RP-N Type | 3 GHz | Polytetrafluoroethylene (PTFE) | Crimp | Female Socket Plug | Nickel | 50 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | Beryllium Copper | 85 °C | -40 °C | Brass | 1000 VDC | ||||
Amphenol Times Microwave Systems | Silver | LMR-400 | TNC | 6000 MHz | Polytetrafluoroethylene (PTFE) | Crimp | Female Socket Jack | White Bronze | 50 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | Beryllium Copper | 125 °C | -55 °C | Brass | 500 V | 500 | |||
Amphenol Times Microwave Systems | Silver | LMR-400 | N Type | 11 GHz | Polytetrafluoroethylene (PTFE) | Clamp | Female Socket Jack | White Bronze | 50 Ohms | 1 | Solder | Gold | Beryllium Copper | 165 °C | -65 ░C | Brass | Bulkhead - Front Side Nut | |||||
Amphenol Times Microwave Systems | Silver | LMR-400 | HN Type | 3 GHz | Polytetrafluoroethylene (PTFE) | Crimp | Male Pin Plug | White Bronze | 50 Ohms | Free Hanging (In-Line) Right Angle | 1 | Solder | Gold | Brass | 155 °C | -55 °C | Brass | 500 | ||||
Amphenol Times Microwave Systems | Silver | LMR-400 | N Type | 2.5 GHz | Clamp | Male Pin Plug | Nickel | 50 Ohms | Free Hanging (In-Line) | 1 | Solder | Gold | 75 ░C | -5 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 29 | $ 12.36 | |
Description
General part information
TC-400 Series
RP-N Type Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
