WR9QI1660CCPN(R6B)

Active

GlobTek, Inc.

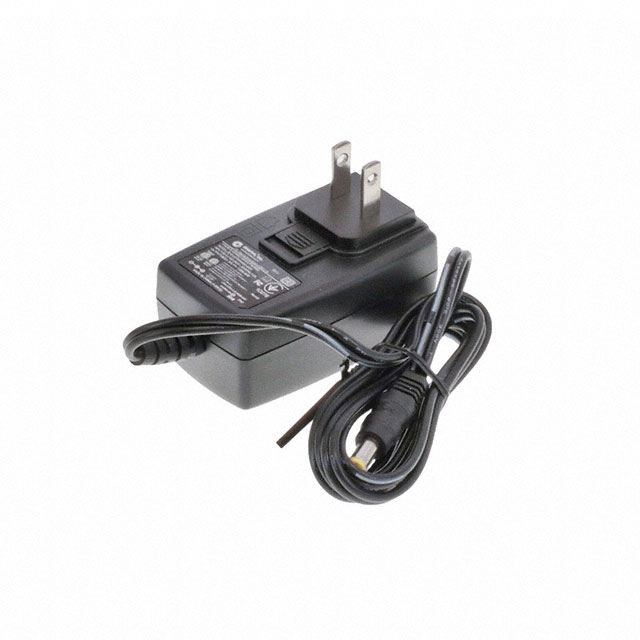

AC/DC WALL MOUNT ADAPTER 24V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QI1660CCPN(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 24V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QI1660CCPN(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UL, cETLus, VCCI, ETL, UKRSepro, CE, CB, PSE, CCC, FCC, LPS, EAC, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	1.66 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	43.5 mm
Size / Dimension [x]	1.71 "
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.39 in
Size / Dimension [z]	35.3 mm
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

WR9QI1660 Series

Part	Polarization	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Form	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Current - Output (Max) [Max]	Input Connector	Applications	Approval Agency	Efficiency	Standard Number	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	No Load Power Consumption [Max]	Output Connector	Size / Dimension [y]	Size / Dimension [z]	Output Connector [x]
GlobTek, Inc. WR9QI1660CCPN(R6B)	Positive Center	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	International	Wall Mount (Class II)	40 °C	0 °C	24 V	1.66 A	Multi-Blade	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	Level VI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	40 W	Barrel Plug	2.1 mm 5.5 mm	11 mm	Multi-Blade (Sold Separately)	90 VAC	264 VAC	1.2 m	47.2 in	75 mW
GlobTek, Inc. WR9QI1660YL4NKITR6B		1.71 in	74 mm	1.39 in			2.91 "	International	Wall Mount (Class II)	40 °C	-20 C	24 V	1.66 A	Multi-Blade	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	CoC Tier 2 Level VI		40 W	Power DIN			Multi-Blade (Sold Separately)	90 VAC	264 VAC	1.2 m	47.2 in	75 mW	4 Pin	43.5 mm	35.3 mm
GlobTek, Inc. WR9QI1660LCPN-NAR6B	Positive Center	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	International	Wall Mount (Class II)	40 °C	0 °C	24 V	1.66 A	Multi-Blade	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	Level VI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	40 W	Barrel Plug	2.5 mm 5.5 mm		Multi-Blade (Sold Separately)	90 VAC	264 VAC	1.2 m	47.2 in	75 mW				11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.77
		5	$ 14.50
		10	$ 13.99
		25	$ 13.33
		60	$ 12.74
		120	$ 12.29
		300	$ 11.71
		540	$ 11.36

Description

General part information

WR9QI1660 Series

24V 40 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
