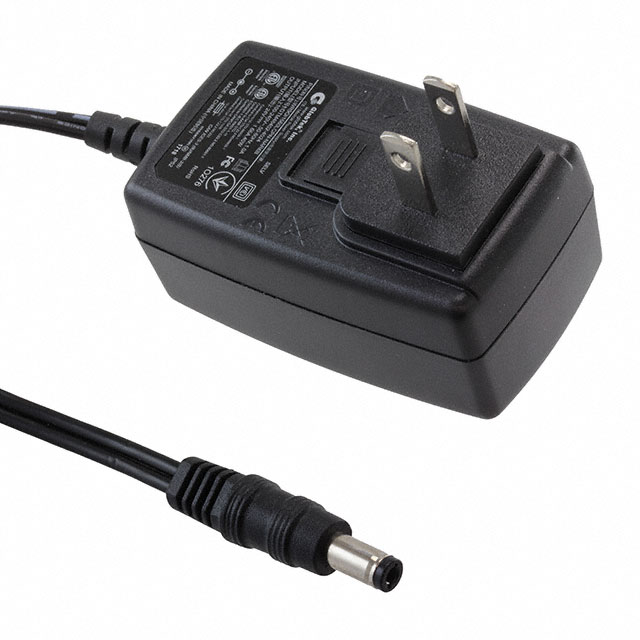

WR9QI1660LCPN-NAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 24V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QI1660LCPN-NAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 24V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QI1660LCPN-NAR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UL, cETLus, VCCI, ETL, UKRSepro, CE, CB, PSE, CCC, FCC, LPS, EAC, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	1.66 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	43.5 mm
Size / Dimension [x]	1.71 "
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.39 in
Size / Dimension [z]	35.3 mm
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

WR9QI1660 Series

Part	Polarization	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Form	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Current - Output (Max) [Max]	Input Connector	Applications	Approval Agency	Efficiency	Standard Number	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	No Load Power Consumption [Max]	Output Connector	Size / Dimension [y]	Size / Dimension [z]	Output Connector [x]
GlobTek, Inc. WR9QI1660CCPN(R6B)	Positive Center	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	International	Wall Mount (Class II)	40 °C	0 °C	24 V	1.66 A	Multi-Blade	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	Level VI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	40 W	Barrel Plug	2.1 mm 5.5 mm	11 mm	Multi-Blade (Sold Separately)	90 VAC	264 VAC	1.2 m	47.2 in	75 mW
GlobTek, Inc. WR9QI1660YL4NKITR6B		1.71 in	74 mm	1.39 in			2.91 "	International	Wall Mount (Class II)	40 °C	-20 C	24 V	1.66 A	Multi-Blade	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	CoC Tier 2 Level VI		40 W	Power DIN			Multi-Blade (Sold Separately)	90 VAC	264 VAC	1.2 m	47.2 in	75 mW	4 Pin	43.5 mm	35.3 mm
GlobTek, Inc. WR9QI1660LCPN-NAR6B	Positive Center	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	International	Wall Mount (Class II)	40 °C	0 °C	24 V	1.66 A	Multi-Blade	Household Appliances ITE (Commercial) Medical	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	Level VI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	40 W	Barrel Plug	2.5 mm 5.5 mm		Multi-Blade (Sold Separately)	90 VAC	264 VAC	1.2 m	47.2 in	75 mW				11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.38
		5	$ 18.10
		10	$ 17.82
		25	$ 16.97
		60	$ 16.40
		120	$ 15.27
		300	$ 15.04

Description

General part information

WR9QI1660 Series

24V 40 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
