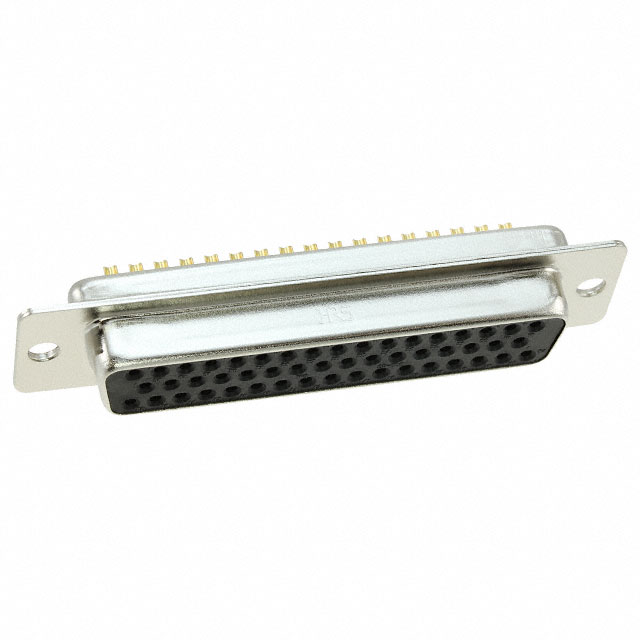

HDDB-50S(05)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 50POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDDB-50S(05)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 50POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDDB-50S(05) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.23 | |
| 10 | $ 18.68 | |||
| 25 | $ 16.91 | |||
| 40 | $ 16.09 | |||
| 80 | $ 14.97 | |||
| 230 | $ 13.47 | |||
| 440 | $ 12.66 | |||
Description
General part information
HDDB Series
50 Position D-Sub Receptacle, Female Sockets Connector
