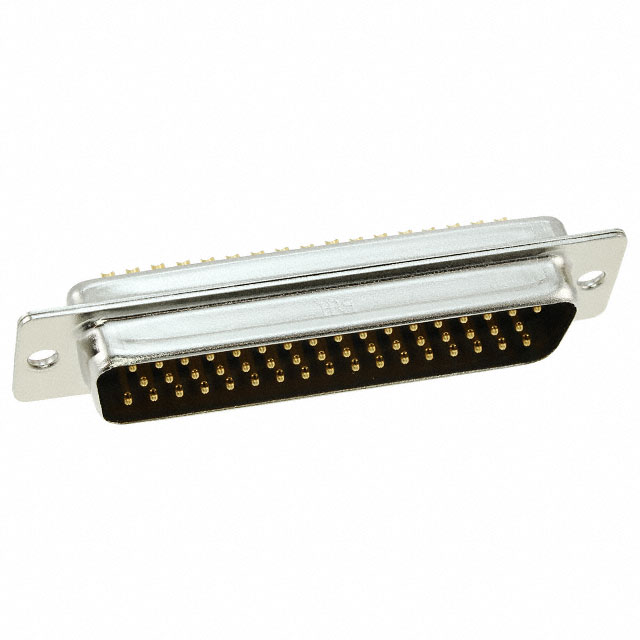

HDDB-50P(05)
ActiveHirose Electric USA, Inc.
D SUBMINIATURE CONNECTOR, 50 CONTACT(S), MALE, SOLDER LUG TERMINAL, LOCKING, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDDB-50P(05)
ActiveHirose Electric USA, Inc.
D SUBMINIATURE CONNECTOR, 50 CONTACT(S), MALE, SOLDER LUG TERMINAL, LOCKING, PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDDB-50P(05) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 39.70 | |
| 20 | $ 32.13 | |||
| 40 | $ 30.60 | |||
| 60 | $ 29.74 | |||
| 100 | $ 28.68 | |||
| 260 | $ 26.82 | |||
| Bulk | 10 | $ 17.15 | ||
| 25 | $ 15.52 | |||
| 50 | $ 14.42 | |||
| 250 | $ 12.25 | |||
| 500 | $ 11.46 | |||
Description
General part information
HDDB Series
50 Position D-Sub Plug, Male Pins Connector
