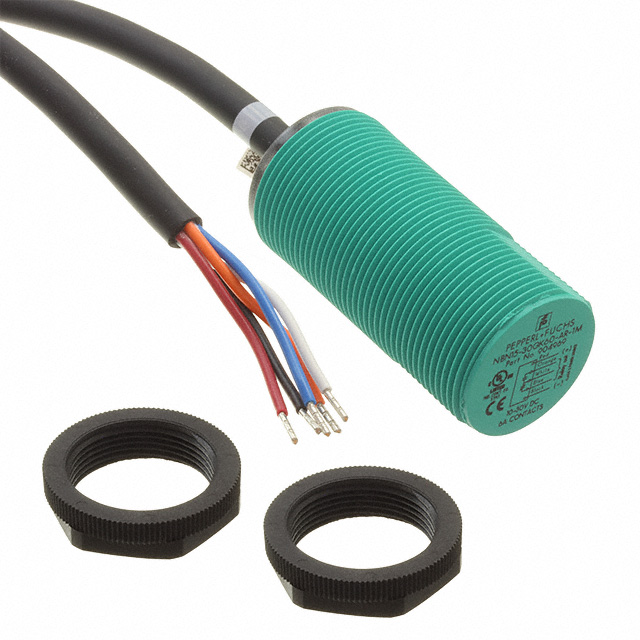

NBN15-30GK60-AR-1M

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM SPDT

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM SPDT

Technical Specifications

Parameters and characteristics for this part

Specification	NBN15-30GK60-AR-1M

Indicator [custom]	LED
Ingress Protection	IP68
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	Cylinder, Threaded - M30
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Distance	Sensing Distance	Ingress Protection	Shielding	Sensor Type	Package / Case	Termination Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body
PEPPERL+FUCHS NBN15-30GM50-E2	15 mm	0.591 "	IP67	Unshielded	Inductive	Cylinder Threaded - M30	Cable	PNP-NO 3-Wire	70 °C	-25 °C	LED	30 VDC	10 VDC	Nickel-Plated Brass
PEPPERL+FUCHS NBN15-30GK60-AR-3M	15 mm	0.591 "	IP68	Unshielded	Inductive	Cylinder Threaded - M30	Cable		70 °C	-40 °C	LED	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)
PEPPERL+FUCHS NBN15-30GK60-AR-1M	15 mm	0.591 "	IP68	Unshielded	Inductive	Cylinder Threaded - M30	Cable		70 °C	-40 °C	LED	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)
PEPPERL+FUCHS NBN15-30GM50-E0-V1	15 mm	0.591 "	IP67	Unshielded	Inductive	Cylinder Threaded - M30	Connector	NPN-NO 3-Wire	70 °C	-25 °C	LED	30 VDC	10 VDC	Nickel-Plated Brass
PEPPERL+FUCHS NBN15-30GK60-UR-3M	15 mm	0.591 "	IP68	Unshielded	Inductive	Cylinder Threaded - M30	Cable		70 °C	-40 °C	LED	132 VAC	20 VAC	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 15MM SPDT

Technical documentation and resources
