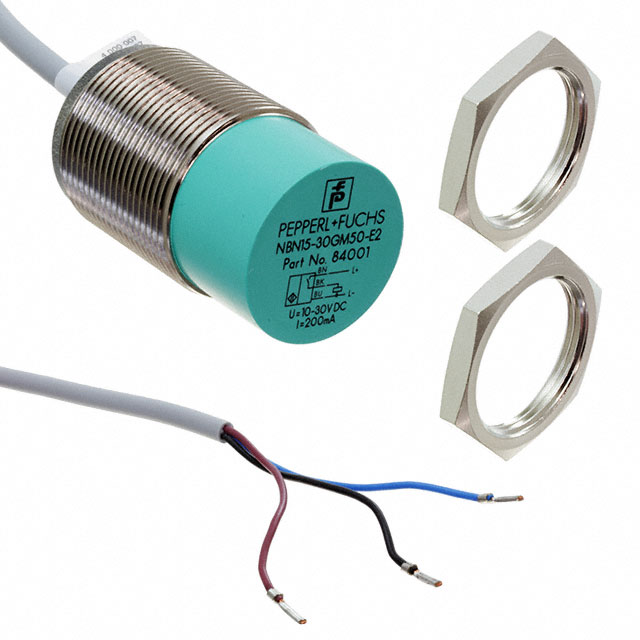

NBN15-30GM50-E2

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Ingress Protection	Shielding	Sensor Type	Package / Case	Termination Style	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body
PEPPERL+FUCHS NBN15-30GM50-E2	15 mm	0.591 "	IP67	Unshielded	Inductive	Cylinder Threaded - M30	Cable	PNP-NO 3-Wire	70 °C	-25 °C	LED	30 VDC	10 VDC	Nickel-Plated Brass
PEPPERL+FUCHS NBN15-30GK60-AR-3M	15 mm	0.591 "	IP68	Unshielded	Inductive	Cylinder Threaded - M30	Cable		70 °C	-40 °C	LED	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)
PEPPERL+FUCHS NBN15-30GK60-AR-1M	15 mm	0.591 "	IP68	Unshielded	Inductive	Cylinder Threaded - M30	Cable		70 °C	-40 °C	LED	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)
PEPPERL+FUCHS NBN15-30GM50-E0-V1	15 mm	0.591 "	IP67	Unshielded	Inductive	Cylinder Threaded - M30	Connector	NPN-NO 3-Wire	70 °C	-25 °C	LED	30 VDC	10 VDC	Nickel-Plated Brass
PEPPERL+FUCHS NBN15-30GK60-UR-3M	15 mm	0.591 "	IP68	Unshielded	Inductive	Cylinder Threaded - M30	Cable		70 °C	-40 °C	LED	132 VAC	20 VAC	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 15 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED
