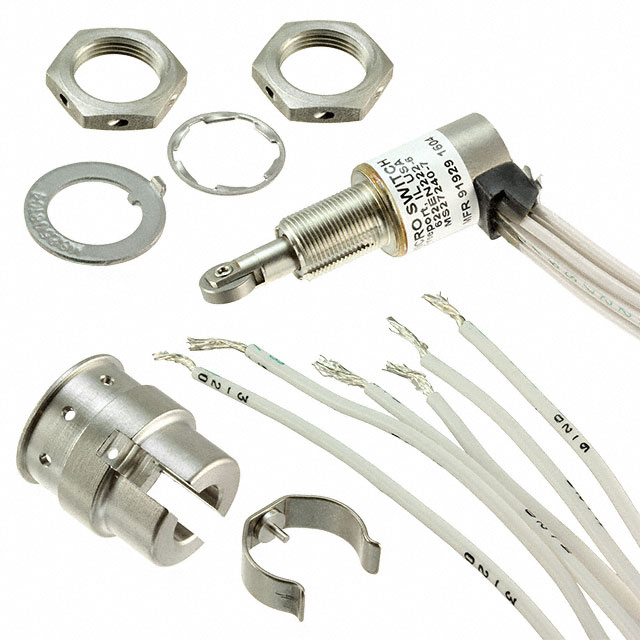

622EN222-6

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDTX2 1A 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEN Series Catalog Sensors and Switches Product Range Guide +1

622EN222-6

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDTX2 1A 28V

Deep-Dive with AI

DocumentsEN Series Catalog Sensors and Switches Product Range Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622EN222-6

Actuator Type	Roller Plunger
Circuit	SPDT x 2
Current Rating (Amps)	1 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	25000 Steps
Mechanical Life	25000 Steps
Operating Force [Max]	5443 gf
Operating Force [Min]	2722 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-54 °C
Overtravel	0.125 in
Overtravel	3.2 mm
Pretravel	0.04 in
Pretravel	1 mm
Release Force	1814 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - DC	28 V

622EN Series

Part	Voltage Rating - DC	Actuator Type	Operating Force [Max]	Operating Force [Min]	Current Rating (Amps)	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Switch Function	Pretravel	Pretravel	Release Force	Circuit	Differential Travel	Differential Travel	Overtravel	Overtravel	Termination Style	Mounting Type	Overtravel
Honeywell Sensing and Productivity Solutions 622EN222-6	28 V	Roller Plunger	5443 gf	2722 gf	1 A	25000 Steps	-54 °C	85 °C	25000 Steps	On-Mom	0.04 in	1 mm	1814 gf	SPDT x 2	0.5 mm	0.02 in	0.125 in	3.2 mm	Wire Leads
Honeywell Sensing and Productivity Solutions 622EN224-6B	28 V	Roller Plunger	5443 gf	2268 gf	1 A					On-Mom	0.04 in	1 mm	1361 gf	DPDT	0.5 mm	0.02 in	0.125 in	3.2 mm	Cable Leads	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN154-RB	28 V	Roller Plunger	5443 gf	2268 gf	7 A					On-Mom	0.04 in	1 mm	1361 gf	DPDT	0.5 mm	0.02 in	0.21 in	5.33 mm	Cable Leads	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN94-6		Roller Plunger	138 gf	69 gf						On-Mom	0.006 in	0.15 mm	46 gf	SPDT	0.05 mm	0.002 in		0.012 in	Cable Leads		0.3 mm
Honeywell Sensing and Productivity Solutions 622EN155-3	28 V	Roller Plunger	5443 gf	2268 gf	7 A					On-Mom	0.04 in	1 mm	1361 gf	DPDT	0.5 mm	0.02 in	0.21 in	5.33 mm	Cable Leads	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN118-R	28 V	Roller Plunger	5443 gf	2268 gf	7 A					On-Mom	0.04 in	1 mm	1361 gf	DPDT	0.5 mm	0.02 in	0.21 in	5.33 mm	Cable Leads	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN83-RB	28 V	Roller Plunger	5444 gf	2721 gf	1 A					On-Mom	0.04 in	1 mm	1814 gf	DPDT	0.5 mm	0.02 in	0.125 in	3.2 mm	Connector	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN112-R	28 V	Roller Plunger	2722 gf	1360 gf	7 A					On-Mom	0.04 in	1 mm	907 gf	DPDT	0.5 mm	0.02 in	0.21 in	5.33 mm	Cable Leads	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN69-3	28 V	Roller Plunger	5444 gf	2721 gf	7 A					On-Mom	0.025 in	0.65 mm	1814 gf	DPDT	0.5 mm	0.02 in	0.125 in	3.2 mm	Cable Leads	Chassis Mount
Honeywell Sensing and Productivity Solutions 622EN226-6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 957.85
