0022272031

Active

Molex

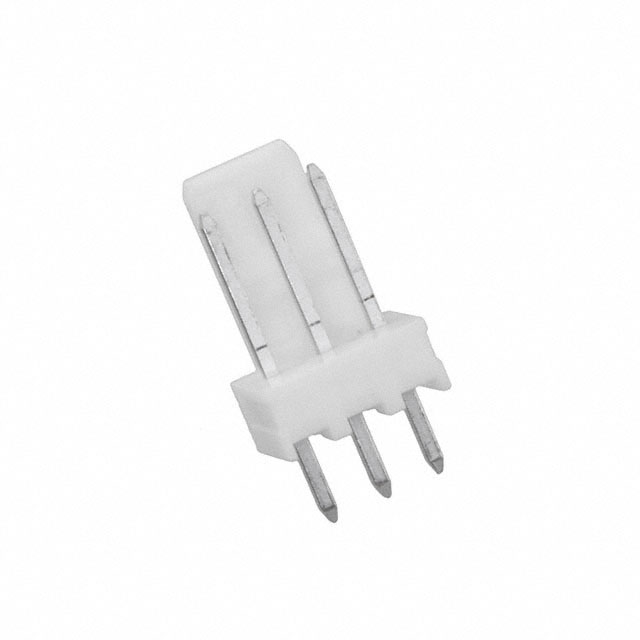

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.50, 2.54mm Centerline Pitch Spec Datasheet

0022272031

Active

Molex

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Documents2.50, 2.54mm Centerline Pitch Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022272031

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	3.56 mm
Contact Length - Post [x]	0.14 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	11.7 mm
Insulation Height	0.461 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

002227 Series

KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating

Part	Applications	Number of Rows	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Style	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Termination	Material Flammability Rating	Connector Type	Number of Positions	Fastening Type	Contact Shape	Number of Positions
Molex 0022272081	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header	8	Friction Lock	Square
Molex 0022272161	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header		Friction Lock	Square	16
Molex 0022272031	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header		Friction Lock	Square
Molex 0022272141	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header	14	Friction Lock	Square
Molex 0022272051	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header		Friction Lock	Square
Molex 0022272041	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header	4	Friction Lock	Square
Molex 0022272121	Automotive General Purpose Medical Telecommunications	1	All	Nylon Polyamide (PA)	7.49 mm	0.295 in	0.1 in	2.54 mm	Male Pin	14.22 mm	0.56 in	11.7 mm	0.461 "	Board to Cable/Wire	Shrouded - 1 Wall	Tin	2.54 çm	100 çin	Brass	Through Hole	3.56 mm	0.14 in	2.54 µm	100 µin	Natural	Solder	UL94 V-0	Header	12	Friction Lock	Square
