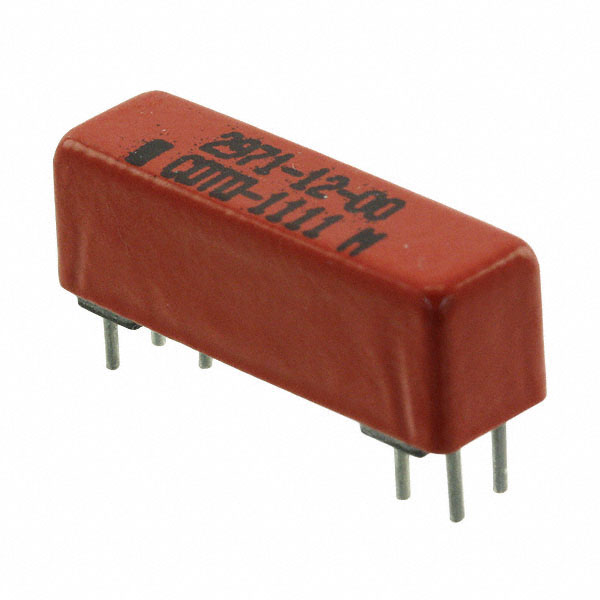

2971-12-00

Active

Coto Technology

RELAY MPAQ HIGH TEMP 1 FORM C CD REV. 00 BOM/MFG REV.NPR/NPR /TUBE

Search across all available documentation for this part.

Active

Coto Technology

RELAY MPAQ HIGH TEMP 1 FORM C CD REV. 00 BOM/MFG REV.NPR/NPR /TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Coil Resistance	Must Operate Voltage	Contact Rating (Current)	Operate Time	Contact Form	Mounting Type	Switching Voltage	Release Time	Coil Voltage	Must Release Voltage	Coil Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current
Coto Technology 2971-12-00	1.5 kOhms	6.7 VDC	250 mA	1 ms	SPDT (1 Form C)	Through Hole	150 VDC 150 VAC	2 ms	12 VDC	1 VDC	Non Latching	PC Pin	125 °C	-40 °C
Coto Technology 2971-05-00	230 Ohms	2.5 VDC	250 mA	1 ms	SPDT (1 Form C)	Through Hole	150 VDC 150 VAC	2 ms	5 VDC	0.4 VDC	Non Latching	PC Pin	125 °C	-40 °C	21.7 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY MPAQ HIGH TEMP 1 FORM C CD REV. 00 BOM/MFG REV.NPR/NPR /TUBE

Technical documentation and resources

No documents available
