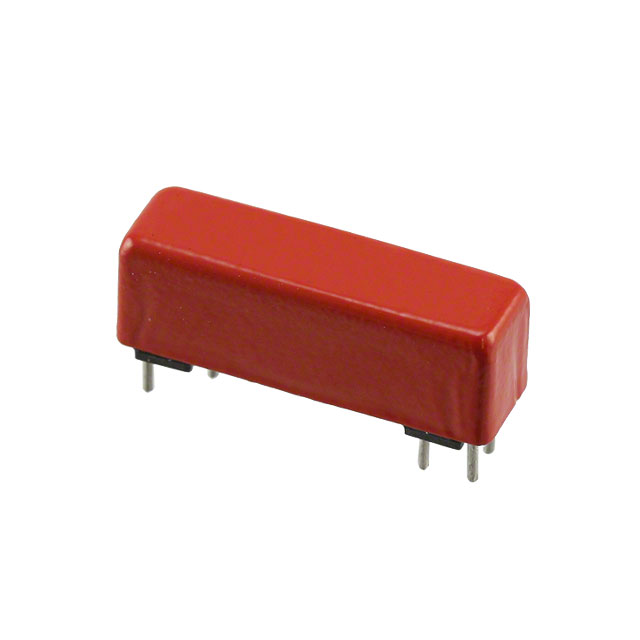

2971-05-00
ActiveCoto Technology
RELAY REED SPDT 250MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
2971-05-00
ActiveCoto Technology
RELAY REED SPDT 250MA 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2971-05-00 |
|---|---|
| Coil Current | 21.7 mA |
| Coil Resistance | 230 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 250 mA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.5 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 150 VDC, 150 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 27.42 | |
| 10 | $ 23.95 | |||
| 29 | $ 22.50 | |||
| 58 | $ 21.60 | |||
| 116 | $ 20.74 | |||
| 261 | $ 19.77 | |||
| 522 | $ 18.99 | |||
Description
General part information
2971 Series
RELAY REED SPDT 250MA 5V
Documents
Technical documentation and resources
No documents available
