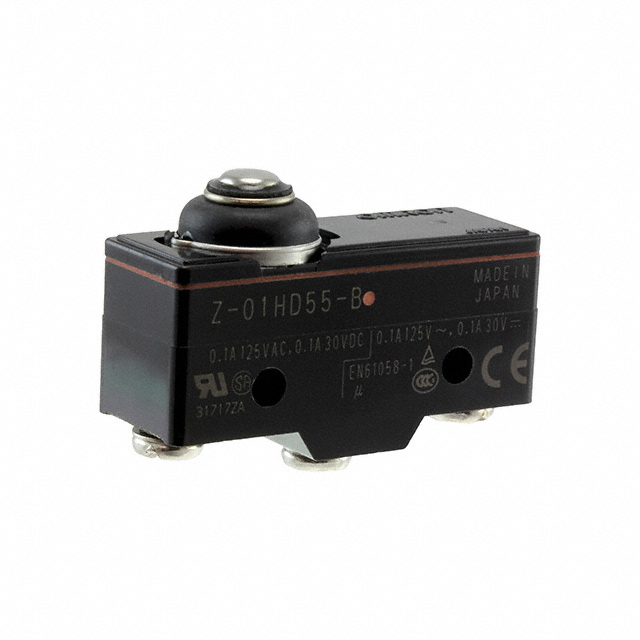

Z-01HD55-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Z-01HD55-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z-01HD55-B

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.002 in
Differential Travel	0.05 mm
Electrical Life	500000 Cycles
Ingress Protection	IP62
Mechanical Life	20000000 Cycles
Mounting Type	Chassis Mount
Operating Force	370 gf
Operating Position	0.846 in
Operating Position	21.5 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-15 °C
Overtravel	1.6 mm
Overtravel	0.062 in
Pretravel	0.075 in
Pretravel	1.9 mm
Release Force	80 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z-01H Series

Part	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Ingress Protection	Circuit	Termination Style	Mounting Type	Electrical Life	Switch Function	Operating Force	Operating Position	Operating Position	Release Force	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Force [Max]	Operating Force [Min]
Omron Electronics Inc-EMC Div Z-01HQ21	100 mA	30 V	125 V	Cross Roller Plunger
Omron Electronics Inc-EMC Div Z-01HNJ155-M19R3EA-K	100 mA	30 V	125 V	Rod Spring	20 mm	0.787 in	80 C	-15 °C	1000000 Cycles	IP62	SPDT	Cable Leads	Chassis Mount	100000 Cycles	On-Mom	50 gf
Omron Electronics Inc-EMC Div Z-01HD55-B	100 mA	30 V	125 V	Round (Pin Plunger)	1.9 mm	0.075 in	80 C	-15 °C	20000000 Cycles	IP62	SPDT	Screw Terminal	Chassis Mount	500000 Cycles	On-Mom	370 gf	0.846 in	21.5 mm	80 gf	1.6 mm	0.062 in	0.002 in	0.05 mm
Omron Electronics Inc-EMC Div Z-01HS-B	100 mA	30 V	125 V	Round (Pin Plunger)	0.5 mm	0.02 in	80 C	-25 °C	20000000 Cycles	IP00	SPDT	Screw Terminal	Chassis Mount	500000 Cycles	On-Mom	0.25 kgf	1.11 in	28.2 mm	80 gf	1.6 mm	0.062 in	0.002 in	0.05 mm
Omron Electronics Inc-EMC Div Z-01HW22S55-B	100 mA	30 V	125 V	Lever Roller			80 C	-15 °C		IP62	SPDT	Screw Terminal	Chassis Mount		On-Mom
Omron Electronics Inc-EMC Div Z-01HQ55-B
Omron Electronics Inc-EMC Div Z-01HQ22-B	100 mA	30 V	125 V	Roller Plunger	0.3 mm	0.012 in	80 C	-25 °C	20000000 Cycles	IP00	SPDT	Screw Terminal		500000 Cycles	On-Mom		1.313 in	33.4 mm	114 gf	3.6 mm	0.141 in	0.001 in	0.025 mm	285 gf	200 gf
Omron Electronics Inc-EMC Div Z-01HDA55-B5V
Omron Electronics Inc-EMC Div Z-01HW21-B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.71
		10	$ 28.74
		25	$ 28.38

Description

General part information

Z-01H Series

Switch SPDT Chassis Mount
