Z-01HQ21

Active

Omron Electronics Inc-EMC Div

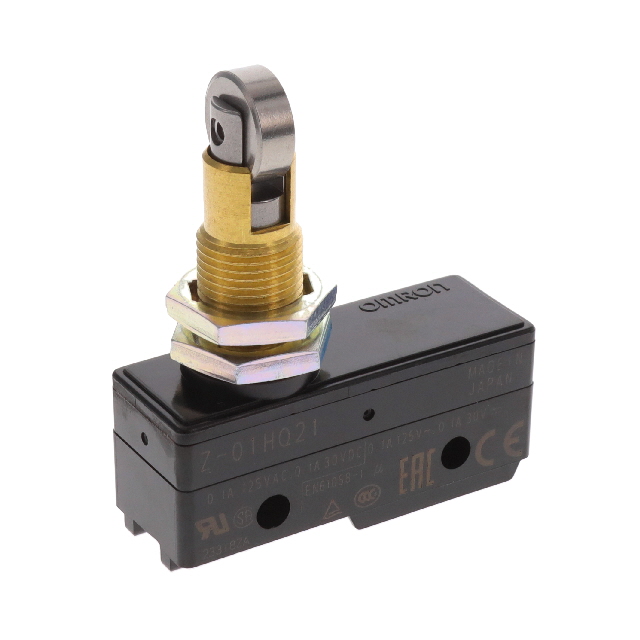

SWITCH PNL MNT CRSS RLR PLUNGR

Deep-Dive with AI

Search across all available documentation for this part.

Z-01HQ21

Active

Omron Electronics Inc-EMC Div

SWITCH PNL MNT CRSS RLR PLUNGR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z-01HQ21

Actuator Type	Cross Roller Plunger
Current Rating (Amps)	100 mA
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z-01H Series

Part	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Ingress Protection	Circuit	Termination Style	Mounting Type	Electrical Life	Switch Function	Operating Force	Operating Position	Operating Position	Release Force	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Force [Max]	Operating Force [Min]
Omron Electronics Inc-EMC Div Z-01HQ21	100 mA	30 V	125 V	Cross Roller Plunger
Omron Electronics Inc-EMC Div Z-01HNJ155-M19R3EA-K	100 mA	30 V	125 V	Rod Spring	20 mm	0.787 in	80 C	-15 °C	1000000 Cycles	IP62	SPDT	Cable Leads	Chassis Mount	100000 Cycles	On-Mom	50 gf
Omron Electronics Inc-EMC Div Z-01HD55-B	100 mA	30 V	125 V	Round (Pin Plunger)	1.9 mm	0.075 in	80 C	-15 °C	20000000 Cycles	IP62	SPDT	Screw Terminal	Chassis Mount	500000 Cycles	On-Mom	370 gf	0.846 in	21.5 mm	80 gf	1.6 mm	0.062 in	0.002 in	0.05 mm
Omron Electronics Inc-EMC Div Z-01HS-B	100 mA	30 V	125 V	Round (Pin Plunger)	0.5 mm	0.02 in	80 C	-25 °C	20000000 Cycles	IP00	SPDT	Screw Terminal	Chassis Mount	500000 Cycles	On-Mom	0.25 kgf	1.11 in	28.2 mm	80 gf	1.6 mm	0.062 in	0.002 in	0.05 mm
Omron Electronics Inc-EMC Div Z-01HW22S55-B	100 mA	30 V	125 V	Lever Roller			80 C	-15 °C		IP62	SPDT	Screw Terminal	Chassis Mount		On-Mom
Omron Electronics Inc-EMC Div Z-01HQ55-B
Omron Electronics Inc-EMC Div Z-01HQ22-B	100 mA	30 V	125 V	Roller Plunger	0.3 mm	0.012 in	80 C	-25 °C	20000000 Cycles	IP00	SPDT	Screw Terminal		500000 Cycles	On-Mom		1.313 in	33.4 mm	114 gf	3.6 mm	0.141 in	0.001 in	0.025 mm	285 gf	200 gf
Omron Electronics Inc-EMC Div Z-01HDA55-B5V
Omron Electronics Inc-EMC Div Z-01HW21-B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 34.74
		10	$ 26.06
		25	$ 23.89
		50	$ 22.44
		100	$ 20.99
		250	$ 20.27
		500	$ 19.54

Description

General part information

Z-01H Series

Switch
