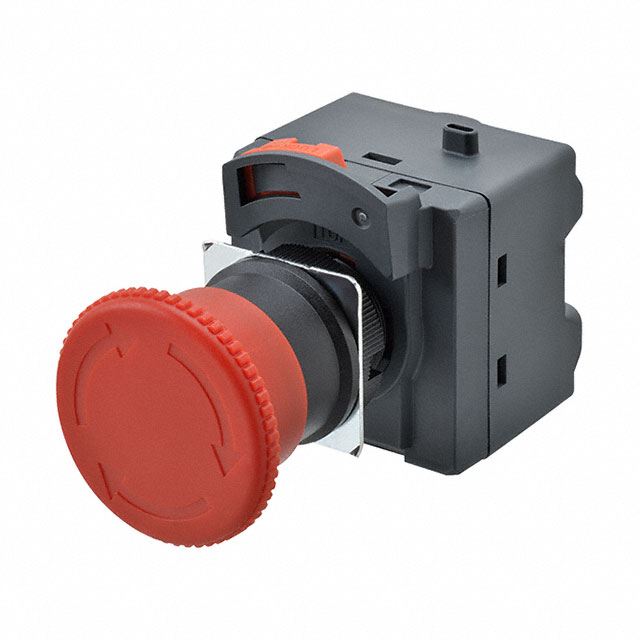

A22NE-MP-PD11-N
ActiveOmron Electronics Inc-EMC Div
SWITCH E-STOP PULL RESET 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A22NE-MP-PD11-N |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 2 A, 5 A |
| Ingress Protection | IP65 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Pull |
| Switch Function | On-Off, Off-On |
| Termination Style | Spring Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 108.95 | |
Description
General part information
A22NE Series
SWITCH E-STOP PULL RESET 5A 125V
