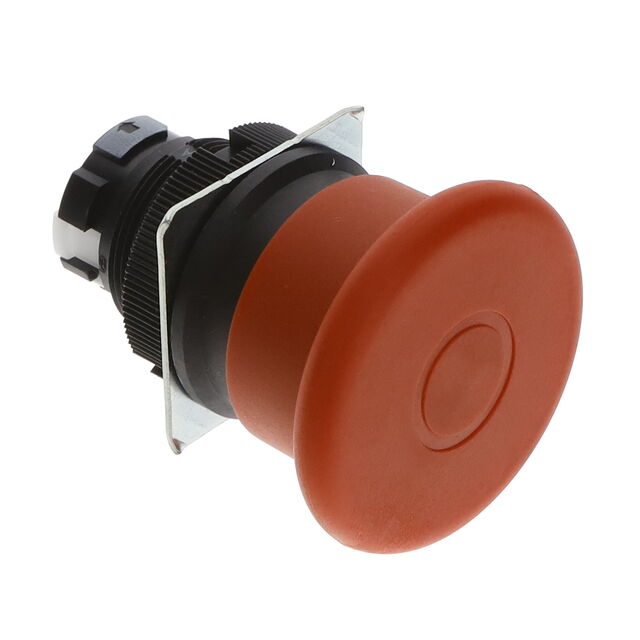

A22NE-MP-N

Active

Omron Electronics Inc-EMC Div

CONFIG SW BODY MUSH PB NON-ILLUM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONFIG SW BODY MUSH PB NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	A22NE-MP-N

(Select First, Then Apply Filters) Compatible Series	Omron, A22NE
Actuator Type	Pushbutton, Mushroom
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	25 mm
Requires	Contact Block(s)
Type	Maintained

Part	Mounting Type	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Reset Operation	Voltage Rating - AC	Ingress Protection	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Features	Illumination	Requires	Actuator Type	(Select First, Then Apply Filters) Compatible Series	Type
Omron Electronics Inc-EMC Div A22NE-M-PD22-N	Panel Mount Front	Off-On On-Off	2 A 5 A	30 V	22.3 mm	Twist	125 V	IP65	Spring Terminal	4PST-2NO/2NC	-20 C	70 °C
Omron Electronics Inc-EMC Div A22NE-M-P202-D
Omron Electronics Inc-EMC Div A22NE-MRS-PD02-N	Panel Mount Front	On-Off	2 A 5 A	30 V	22.3 mm	Twist	125 V	IP65	Spring Terminal	DPST-NC	-20 C	70 °C	EMS Marking
Omron Electronics Inc-EMC Div A22NE-MP-N					25 mm									Non-Illuminated	Contact Block(s)	Pushbutton Mushroom	A22NE Omron	Maintained
Omron Electronics Inc-EMC Div A22NE-MP-P222-N
Omron Electronics Inc-EMC Div A22NE-M-P102-D
Omron Electronics Inc-EMC Div A22NE-M-P102-A
Omron Electronics Inc-EMC Div A22NE-MP-PD11-N	Panel Mount Front	Off-On On-Off	2 A 5 A	30 V	22.3 mm	Pull	125 V	IP65	Spring Terminal	DPST-NO/NC	-20 C	70 °C
Omron Electronics Inc-EMC Div A22NE-MP-N-69K
Omron Electronics Inc-EMC Div A22NE-MP-P002-N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Mushroom Non-Illuminated
