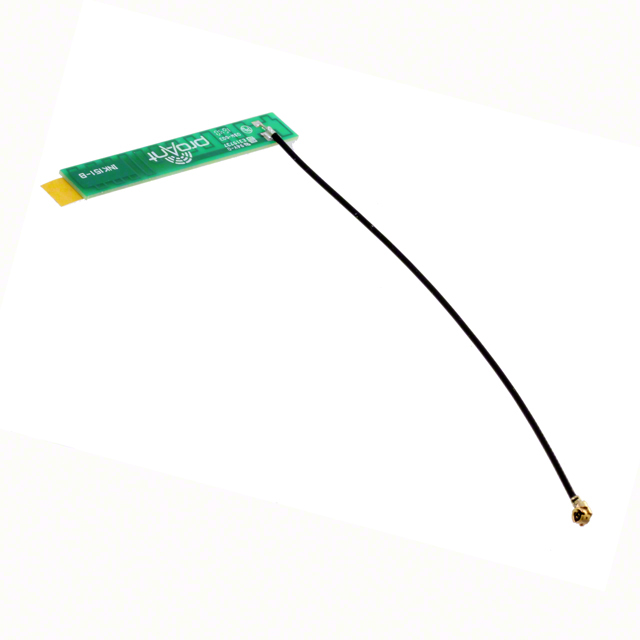

PRO-IS-583

Active

Abracon LLC

INSIDE GSM/DCS MHF4 100MM ADH

Search across all available documentation for this part.

Active

Abracon LLC

INSIDE GSM/DCS MHF4 100MM ADH

Technical Specifications

Parameters and characteristics for this part

Part	Features	Features	Termination	Number of Bands	Gain	Frequency Range [Max]	Frequency Range [Min]	Return Loss	Mounting Type	Applications	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Frequency (Center/Band)	Antenna Type	VSWR	Height (Max)	Frequency Group	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Power - Max [Max]
Abracon LLC PRO-IS-590	Cable	100 mm	IPEX MHF4	2	5.5 dBi	2.17 GHz 960 MHz	1.71 GHz 791 MHz	-6 dB	Adhesive	EDGE GPRS GSM LTE UMTS	0.005 in	0.13 mm	Cellular	1.94 GHz 875.5 MHz	PCB Trace
Abracon LLC PRO-IS-583	Cable	100 mm	IPEX MHF4	2	3 dBi	1.99 GHz 960 MHz	1.71 GHz 868 MHz		Adhesive	GSM	0.031 in		Cellular	1.85 GHz 914 MHz	PCB Trace	4	0.8 mm
Abracon LLC PRO-IS-577	Cable	100 mm	IPEX MHF1 U.FL (UMCC)	2	5.5 dBi	2.17 GHz 960 MHz	1.71 GHz 791 MHz	-6 dB	Adhesive	GSM	0.005 in	0.13 mm	Cellular	1.94 GHz 875.5 MHz	PCB Trace			Wide Band
Abracon LLC PRO-IS-432	Cable	100 mm	IPEX MHF1 U.FL (UMCC)	2	3 dBi	2.485 GHz 5.875 GHz	2.4 GHz 5.18 GHz		Adhesive	WLAN			WiFi	2.4 GHz 5.5 GHz	PCB Trace				1 mm	0.039 in	4 GHz	2 GHz	3 GHz	3 W
Abracon LLC PRO-IS-578	Cable	100 mm	IPEX MHF4	2	3 dBi	2.485 GHz 5.875 GHz	2.4 GHz 5.15 GHz		Adhesive	Bluetooth ISM WLAN Zigbee™				2.4425 GHz 5.5125 GHz	PCB Trace	3			1 mm	0.039 in	4 GHz	2 GHz	3 GHz
Abracon LLC PRO-IS-587	Cable	100 mm	IPEX MHF4	1	3 dBi	2.485 GHz	2.4 GHz		Adhesive	ISM			General ISM	2.4425 GHz	PCB Trace	2			1 mm	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA GSM PCB Trace IPEX MHF4 Adhesive
